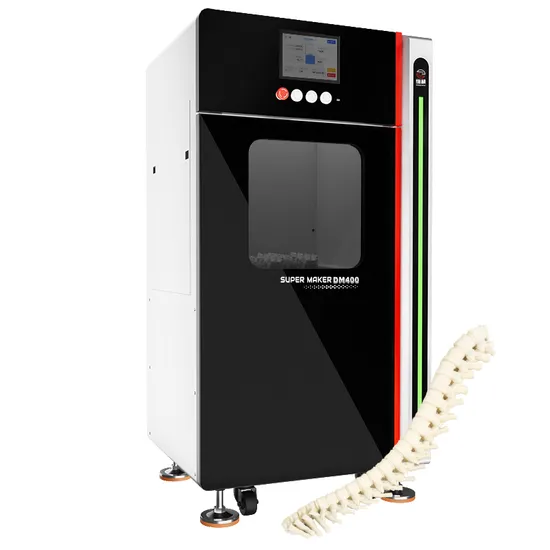

Dm-400 Top-Down DLP 3D Printer Large Format Precision Printing for Industrial Applications
Basic Info.
Model NO.
DM 400
Size
Medium
Speed
6-8 Second/Layer
Forming Technology
DLP
Connections
USB
Software Format
.stl
Printing Material
DLP Resin,with 405nm
Operating Screen
7.0 Resistive Screen
Power Requirment
220V/50Hz
Light Source
4K405 Light Source DLP
Net Weight
320kg
Transport Package
Crate Case
Trademark
ZONGHENG
Origin
China
HS Code
848520000
Production Capacity
20set/Month
Product Description
| Product Model | DLP-DM400 |
| Operating system | Zongheng Self-developed System |
| Operating screen | 7.0" resistive screen |
| Print size | 384*216*330mm |
| XY Resolution | 100um resolution |
| Technology | Top-Down DLP |
| Light source | 4k, 405 light source DLP |
| Connection method | USB stick or network cable |
| Z-axis accuracy | 0.002 |
| Layer thickness | 0.03-0.15 |
| Print speed | 6-8 seconds per layer |
| Power Requirements | 220v/50HZ |
| Slicing software | Self-developed |
| Machine size (L*W*H) | 810*690*1560mm |
| Net weight | 320KG |
| Slicing Software | VoxelDance Tango |
| Printing Platform | Magnetic detachable platform |
| Import File Format | igs,stl,step |
| Coating system | Adjustable negative pressure scraper |
| Warranty | One Year |
| Tank Capacity | 58.3L(70KG) |
| Resin | 405nm:Model Resin, Dental Resin, Flexible resin, Jewelry Resin, High Temperature Resin, High ToughnessResin,Water Washable Resin,Transparent Resin |
1. SuperMaker DM400 is DLP 3d printer developed for model resin and ceramic printing, open style, easier to adjust. 2. Suitable Projector modes: 405nm or 385nm. 3. We have created unique testing function for material testing. Do not need complex operations. Supports single-layer exposure of specified models. Parameters can be modified directly on the touch screen, and a set of curing parameters can be tested in one minute. With just a few milliliters resin, simple models can be printed to test performance. 4. It supports stl, igs, step file. 5. Scrapers: two kinds of working model, one is for without coating and pressure, use for the high sticky resin, such as ceramic resin, another one is with coating and pressure, use for normal model resin etc. 6. Equiped with various tanks with different sizes. Users can customize the tank.
