High Performance Pneumatic Coupling Air Operated Aluminum Diaphragm Pump Parts for Chemical

Product Description

High Performance Pneumatic Coupling Air Operated Aluminum Diaphragm Pump Parts for Chemical Zhejiang Xiafeng Precision Die Casting Co., Ltd., we specialize in the design, development, production, and sales of pump accessories, valve accessories, amusement park accessories, gas station accessories, aluminum die casting, aluminum metal crafts, electric vehicle accessories, pneumatic actuator accessories, gearbox gears, gearbox housings, primary gears, infinite gears, machine base shells, stepless speed control covers, and aluminum machine base. Product Description
Air operated double diaphragm pump
Mine diaphragm pumps produced by our company adopts, absorbs and improves the most advanced production technology and technology of pneumatic diaphragm pumps in the world. This product is specially designed for coal mines and has traditional submersible electric pumps, mud pumps, impurity pumps, All the functions of the flexible shaft pump are a revolution of the traditional mine water pump. The key is to completely solve the safety problem of traditional water pump,which can provide high delivery speed even under low air pressure and is compatible with a wide range of materials, and has an anti-stall design, modular air motor / fluid part. They can be applied in underground mines to discharge clean water or sewage containing solid particles (volume concentration less than 2%), and also be used in non-coal mines and other occasions with similar conveying media. Air operated double diaphragm pump working environment conditions 1. Compressed air for power use, the pressure should be in the range of 0.2 ~ 0.7mpa; 2. The temperature of the conveying medium shall not exceed 40ºC; 3. The PH of the conveying medium is in the range of 4 ~ 10; 4. The maximum diameter of solid particles shall not exceed 6 ~ 9mm, and the volume concentration shall not exceed 2%; 5. Ambient temperature: -20ºC ~ 50ºC; 6. Ambient humidity: ≤95% (when ambient temperature is +25ºC); 7. Atmospheric pressure: 80kPa ~ 106kPa; 8. It is suitable for coal mine underground coal dust and methane explosive gas danger place, but does not destroy the insulation corrosive gas place. Product Parameters

Name	Die cast parts
Material	Aluminum Alloy
Brand	Zhejiang Xiaofeng
Model	Diaphragm pump
Rated suction head (M)	7/7/7
Caliber	1/1.5/2
Drainage head (M)	30/50/65
Maximum particle diameter (MM)	4
Operating temperature (° C)	0~70
Maximum working pressure (MPA)	0.7
Drainage flow rate (L/M | N)	60/250/350
Gas supply pressure (MPA)	0.4/0.5/0.63
Noise (DBA)	(Sound pressure level: 88/Sound power level: 95)
Surface	Acid white surface/Shot blasting treatment/Wire drawing polishing treatment/Mirror polishing treatment

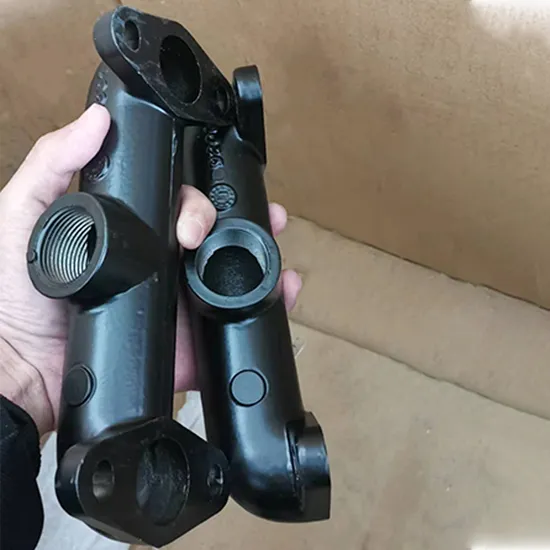

Detailed Photos
Feature
Application
Company Profile
Zhejiang Xiafeng Precision Die Casting Co., Ltd. is a company located in Oubei, Yongjia, Wenzhou, known as the "hometown of pumps and valves". We specialize in the design, development, production, and sales of pump accessories, valve accessories, amusement park accessories, gas station accessories, aluminum die casting, aluminum metal crafts, electric vehicle accessories, pneumatic actuator accessories, gearbox gears, gearbox housings, primary gears, infinite gears, machine base shells, stepless speed control covers, and aluminum machine base.
FAQ
Q1 : Could I put my own logo on it?
A : Sure, We accept OEM and ODM.
Q2 : What is your sample policy?
A : We can supply the sample, but the customers have to pay the shipping cost.
Q3 : Could I produce according to the samples?
A : Of course. we can produce by your samples or technical drawing, We can build the molds.
Q4 : How long is production time?
A : Based on the quantities sample order 7-15 days, mass order 30-60days.
Q5 : Do you test all your goods before delivery?
A : Of course, We have 100% test before delivery.
