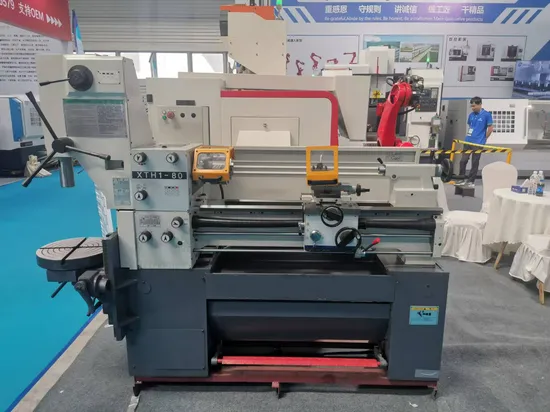

XTH1 Multi-Purpose Lathe
Product Description

1.Overview
XTH1 is developed from one of CXT series engine lathe, It merged with the function of the drilling machine and lathe, it has a wide range of performance, suitable for general mechanical manufacturing of single piece and small batch production workshop, tool manufacturing, machinery and equipment repair departments and laboratories, it can be used in rough and finished machining inside and outside the cylinder to black metal, non-ferrous metal, nonmetal workpiece,cone and other forms of rotary surface; Also can cutting all kinds of commonly used metric threads,the inch thread,modulus,diametric pitch and multi-start thread; drilling, reaming and tank can broaching processing work, etc. Now, this machine is exported to Japan.
Product Parameters

No.	Working Range	XTH1
1	Max.Swing over Bed	360mm
2	Max.Swing over Cross Slide	200mm
3	Max Distance between centers	600mm
4	Spindle Bore	40mm
5	Taper of Splidle Bore	M5
6	Spindle Nose	A5/D5
7	Steps of Spindle Speed	6
8	Range of Spindle Speed	80-930r/min
9	Chuck	φ160
10	Bed Width	220mm
11	Cross Slide Width	120mm
12	Cutting Tool Max Section	20*20mm
13	Diameter of Tailstock Quill	40mm
14	max travel of Tailstock Quill	80mm
15	Taper of Tail Stock Quill	M3
16	Range of longitudinal Feeds(kinds)	0.03-0.42
17	Range of Cross Feeds(kinds)	0.015-0.21
18	Range of Metric Threads(kinds)	0.25-9(20)
19	Range of Inch Threads(kinds)	72/4(33)
20	Maximum Drilling Diameter	φ38
21	Maximum Travel of Spindle	100mm
22	Spindle Speed and Range	250/490/740
23	Worktable Diameter	φ350
24	Distance of Worktable	250mm
25	Power of Motor	2.2KW
26	Power of Coolant Pump	40W
27	Gross Weight	780 KG
28	Net Weight	690 KG
29	Overall Dimension (L x M x H)	1950 X 920 X 1650

Detailed Photos
Our Advantages

3. List of main electronic components

Main Electronic Components	Supplier
Main motor	made in China
control box	made in China
light	made in China
Coolant pump motor	made in China

4.Machine tool accessories 3-jaw chuck, steady rest, Follow rest, thread-cutting dial is assembled in lathe, the main accessories are include 4-jaw chuck, face plate, and tool box. The specially accessories are include chuck cover, tool cover, and lead screw cover. There is welding bed legs and cast iron bed are available. 5.Main characteristics (1)The spindle supported by 3-pointed high precision bearings and all gears in headstock are precisely grinded, the spindle turns smoothly at high speed. High rigidity spindle system, with absolute temperature rising no higher than 35ºC. (2)The material of headstock is HT300, the material of feed box and sliding box is HT200, these boxes are machined after head treatment, it is stable and high-precision. (3)The bed=ways are made of high quality casting iron, and are all casting with the resin sand foundry technology and aging process. The bed ways are induction-hardened, with hardness around HRC 55-60.
