Machining Centre Factory′ S Best-Selling Vmc850 Machining Centre CNC Machining Center 3 Axis Price

Product Description

Product Description


The machining center series products are mainly used for the production of precision molds, automotive
parts, aerospace parts, batch processing of high-precision parts for regular production, etc.And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.

Specification

Item Model	Unit	VMC850
Size of worktable	mm	1000*500
T-shaped groove for table	mm	5-18*102
Maximum load on table	kg	400
X/Y/Z rail width	mm	35/35/35
X/Y/Z ball screw specification	mm	3616/3616/3616
X/Y/Z Axis stroke	mm	800*500*500
X/Y/Z motor torque	NM	15/15/22(Contracting brake)
Spindle face to table position	mm	110-610
Distance from Spindle Center to column	mm	524
Cutting feed rate	mm/min	1-8000
X/Y/Z axis fast feed	m/min	48/48/36
Spindle end taper/diameter	mm	BT40-150
Spindle motor power	kw	7.5
Maximum spindle speed	rpm	8000
Form of Tool Bank	-	Disc
The capacity of knife storage	tools	24
Maximum tool diameter/weight	mm/kg	78/120/8
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positioning	mm	0.005
Weight of machine tool	kg	5100
External dimensions	mm	2800*2350*2650

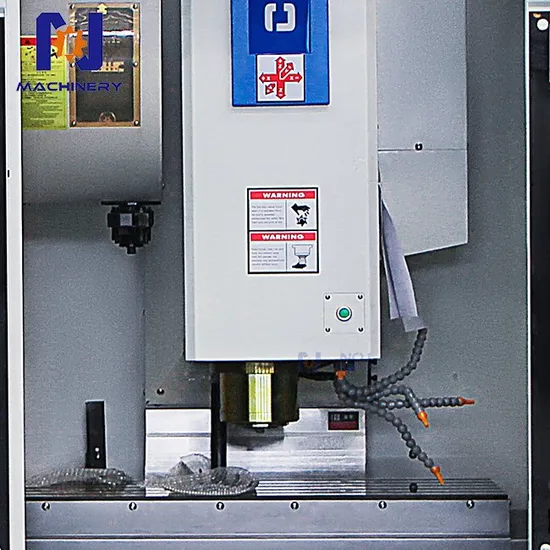

Details Display
1.Taiwan KENTURN BT40 Spindle, Optional 8000, 10000, 12000rpm

2.OKADA 24 TOOLS, Automatic tool changing system 24-ATC

3.Hand pulse, Air gun, Water gun



4.Yunnan HT300 resin sand casting, tempering elimination internal stress, high copper density, long time use no deformation.
5.SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements
6.Safety electrical components Quick plug as standard Make the machine performance better.
Recommended by seller

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile


Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.


FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
