Automatic Ribbon Through Garbage Rolling Bag Making Machine Draw String Rolled Garbage Bag Making Machine Drawstring Trash Bag on Roll Making Machine Price

Product Description

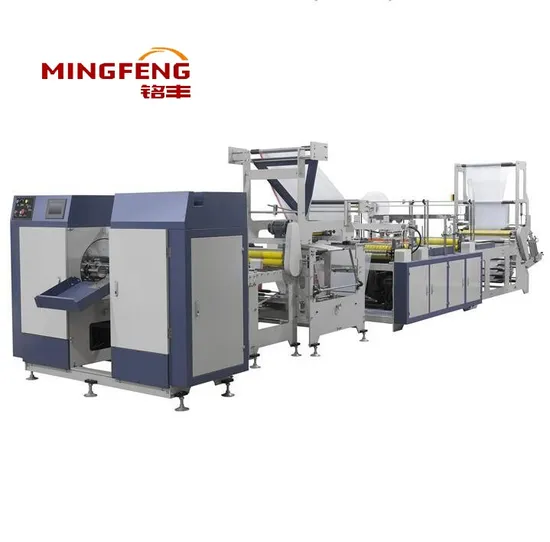

Automatic Draw Tape Biodegradable Rolling Garbage Bag Making Machine(Coreless)

Model	MF800
Max bag wide	800mm
Max bag length	700mm
Film thickness	0.01-0.04mm
Machine speed	According to the minimum size 45 wide *55cm about 50-140 PCS/min
Total power	15kw
Machine weight	2000kgs
Dimension	9500*2200*1900mm

Machine detailed specification:

Items	Parameter
Machine main part :
Machine main controller	PLC and touch screen (7 inches) control, 24V power supply for the Wuxi Kelai switch power supply.
Power of main motor	1.5kw 220V Ac motor (external 15N.M,DC99V brake) non-brake motor, easy maintenance
Main motor controller	1.5kw 220v Innovance Inverter controller
Active feed and passive feed	Active feed servo motor 3.7kw*1 Passive feed servo motor 3.7kw*1
Temperature control zone	5 zones, solid heating, including high and low temperature alarm function
Temperature control precision	±2ºC
Total heating power	Copper knife heating rod power 1.2kw*3
Unwinding part :
Active unwinding	550w aluminum case reduction motor *1 set
Active unwinding motor control	0.75kw Innovance frequency conversion control *1 set , linear potentiometer speed adjustment (analog)
Material break stop control	photocell tracking device from Japan Panasonic c *1 set(black film effective), 40*20mm thin cylinder press *2 sets.
Material feeding type	Cylinder feeding, 100*250mm cylinder 2 pcs, hand valve control. (pneumatic expansion shaft, pneumatic brake)
passive unwinding	550w horizontal AC motor 1 piece
passive unwinding motor control	0.75kw Innovance frequency conversion control *1 set , Omron proximity switch to adjust speed (switching quantity)
Traction part :
traction motor power	550w horizontal AC motor 1 set
Traction motor control	0.75kw Innovance frequency conversion control, Japan Panasonic photoelectric switch adjustment speed *1 set (switching quantity)
Special device	EPC system 1 set
Rewinding part :
rewinding controller	PLC (3U3232MT) from China and touch screen (7 inches) control, 24V power supply for Taiwan Ming Wei switching power supply (100w).
Winding motor power	550w AC motor*2 SETS
Winding motor controller	0.75kw INNOVANCE inverter controller*2,
FLIP CONTROL	Ss SERVO MOTOR 1.0*1, Flip around separate, independent count.
Equipment electrical configuration:
Contactor brand:	Intermediate relay brand:
Solenoid valve brand: China Taiwan Airtac	Blow air solenoid valve: Airtac
Bearing from Japan NSK
Total power	About 19.5kw
actual consumption power	About 6kw/h
Weight	2000kg
Dimension	9500*2200*1900mm

UNWINDER PART:1.Unwinding adopt AC motor drive type active feeding, large diameter design, reduce downtime. Driven by a frequency converter to control tension, which can be automatically along with the change of tension and roll diameter change speed2.The unwinder adopts pneumatic loading 3.Equip with non-material,or the material is cut,the machine automatically stop device.4.The unwinding tension is action feeding type5.The material for this machine are the normal rolling tube material or the material which is already folded by film blowing machine. The material can be HDPE,LDPE,LLDPE,and recycle material.CONTINUOUS PUNCHING PART:1.Using the latest design of continuous punching equipment, raising the speed of the bag2.Specially designed continuous punching device, continuous transportation under the state of high speed punching in the film3.With China good brand photoelectric encoder technology to drive the punching equipment4.Online non-stop change the punching position, easy to operate the invention of the designHEAT SEALING AND PERFORATION PART: 1.With printing bag light magic eye tracking device2.Automatic feeding by the servo motor speed control3.With pre-heat device4. Perforation and sealing are set at the same place,in case the sealing line is changed and affect the perforation5. Up and down sealing knife independent temperature control REWINDING PART
1.Fully automatic design-without core rewinding,automatic positioning,automatic finished roll exchange system.2.Rewinding traction adopt inverter automatic control rewinding speed (with brake motor)3. Exchange adopt inverter control,positioning exactly.4.Label device is the optional device(need extra cost 2,000USD)
Related Products
Company Profile
Our Ruian Mingfeng Machinery Co.,Ltd. is a professional manufacturer of film blowing machine, plastic bag making machine, printing machine and recycling machine etc.Since the establishment of the company, market-oriented, relying on science and technology, vigorously develop new products.Our factory with excellent product quality, excellent corporate reputation, best-selling products all over the world, exported to Russia, Southeast Asia, the Middle East, Africa, South America and other places, by the users trust, get consistent praise.
Our aim: to the best products, to cheap prices, the best service to create a first-class plastic machine enterprises.We strictly follow the purpose of the enterprise, take honesty as the foundation, warmly welcome friends from all of the world to visit, mutual benefit, and seek common development!
Certifications
Packaging & Shipping
After Sales Service
100% Good Machine Quality
One year Guaranty Time
24 hours On Line Service
Overseas Technician Available
Cotact Girl:Ms.Amy
Our Workshop
FAQ:
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
