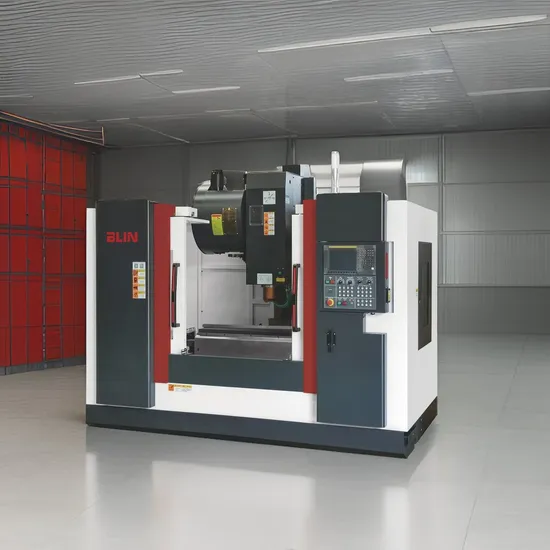

High Speed Vertical CNC Milling Machine Metal (BL-B850/1060/1580)
| US$41,000.00-92,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-B850/1060/1580
Type
Worktable Milling Machine
Object
Thread
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X/Y/Z Axes Guideway Type
Hard Box
Table Size
1050×500/1300×600/1700×800mm
X/Y/Z Axes
800/500/550;1000/600/600;1500/800/700mm
Spindle Type
Bt40/Bt50
Spindle Motor
7.5/11kw;15/18.5kw
Spindle Speed
8000rpm(Option:10000rpm)
Transport Package
Plywood Case/Steel Pallet
Specification
Box guideway
Trademark
BLIN
Origin
China
HS Code
8459619000
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
High speed vertical cnc milling machine metal (BL-B850/1060/1580)- 3 axes adopt WIDE RECTANGLE BOX guideway, Heavy-duty type,suitable for heavy-duty cutting
- Adopt CHINA top class cast iron
- Use 24T Arm type ATC, fast and stable tool changing
- 3 axes use TAIWAN C3 class precision ball screw
- Adopt TAIWAN precise spindle unit
Details:
| Item | Specification | Unit | BL-B850 | BL-B1060 | BL-B1580 |
| Guideway | X/Y/Z axes guideway type | / | HARD BOX | HARD BOX | HARD BOX |
| Worktable | Table size | mm | 1050×500 | 1300×600 | 1700×800 |
| Table max. loading | kg | 600 | 800 | 1500 | |
| T slot(NO./width/gap) | mm | 5/18/90 | 5/18/120 | 5/22/135 | |
| Travel | X/Y/Z axes | mm | 800/500/550 | 1000/600/600 | 1500/800/700 |
| Spindle | Distance from spindle nose to table surface | mm | 150~700 | 180~780 | 170~870 |
| Distance from spindle center to column surface | mm | 560 | 655 | 800 | |
| Spindle type | mm | BT40 | BT40/BT50(opt.) | BT50 | |
| Spindle motor | kw | 7.5/11(FANUC) 7(SIEMENS 828D) | 7.5/11(FANUC) 9(SIEMENS 828D) | 15/18.5(FANUC) 12(SIEMENS 828D) | |
| Spindle speed range | rpm | 8000(belt-drive) (opt.:10000/12000) | 8000(belt-drive) (opt.:10000/12000) | 7000 | |
| Feeding axes | Cutting feed speed | m/min | 10 | 10 | 10 |
| Fast moving speed | m/min | 20/20/20 | 20/20/20 | 20/20/20 | |
| Ball screw O.D./pitch | mm | Φ40/10 | Φ40/12 | Φ63/10(XY)/Φ50/10(Z) | |
| Precision | Positioning precision | mm | 0.012/0.010/0.012 | 0.015/0.012/0.012 | 0.028/0.018/0.020 |
| Repeatable positioning precision | mm | 0.008/0.006/0.008 | 0.010/0.008/0.008 | 0.018/0.010/0.013 | |
| Tool magazine | Tool magazine type | / | Umbrella type 20T/Arm type 24T | ||
| Max. tool weight | kg | 8 | 8 | 15 | |
| Max. tool length | mm | 300 | 300 | 350 | |
| Max. tool dia. | mm | Φ80 | Φ80 | Φ110 | |
| Others | Total power | KVA | 15 | 20 | 35 |
| Overall dimension(L×W×H) | mm | 2800×2300×3100 | 3200×2750×3200 | 4300×3750×3100 | |
| Gross weight/Net weight | kg | 6500/6000 | 8000/7500 | 13000/12500 | |
Main parts list:
| Parts | Brand |
| Bearings | JAPAN NSK/NTN |
| Ball screw | TAIWAN HIWIN/PMI |
| Spindle | TAIWAN |
| Servo motor& driver | GERMAN SIEMENS/JAPAN FANUC |
| Air-oil cylinder | TAIWAN |
| Lubrication pump | JAPAN HERG |
Standard configuration: - FANUC CNC Controller
- 24T ARM type tool magazine Optional configuration: - SIEMENS 828D CNC Controller
- 20T Umbrella type tool magazine
- Chip conveyor
- ZF reduction box
