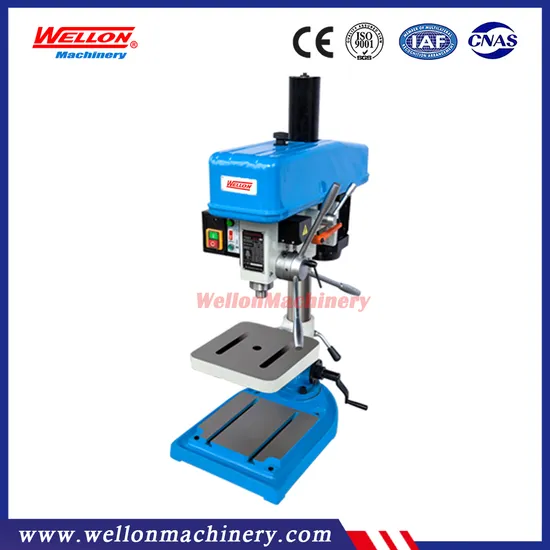

Cheaper Drilling and Tapping Machine ZS4125B1

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
The spindle sleeve with anti-rotation mechanism.strengthen the guide,preventing the head rotation,
to avoid the blind performance of the gear shaft and sleeve.at same time the multi-spindle head improve
the precision location.
Spindle head can rise/down by handle,portable and flexible
Belt adjust mechanism adopt the gear driving and rack driving,easier than manual adjust.the clamp adopt
screw locking the slant of motor pin,the clamp reliable and easy to operate.
The bottom of belt cover can be instead of full-locked structure to increase the degree of protection.
The handle shaft adopt steel,everlasting.lengthen the arm,easy to operate and more efficient
Spindle body with the LED light,easy to operate,lighten the working environment.
Technical parameter:

Model		ZS4125B1
Max.drilling capacity	mm	25
Max. Tapping capacity	mm	20
Spindle travel	mm	125
Distance spindle to column	mm	240
Max.distance spindle nose to table	mm	299
Max.distance spindle nose to base	mm	560
Spindle taper		MT3
Spindle speeds range	r/min	290~2150
Spindle speeds series	steps	6
Dimension of base	mm	280x300
Dimension of worktable surface	mm	315x335
Main motor	kw	1100
Net weight	kg	140
Packing dimension	mm	87x51x109cm

Standard accessories:
Drill chuck
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard
Coolant system
Multi-spindles
