Visual Imu-Rtk Gnss Receiver Chc X16 PRO I93 GPS Rtk Chcnav

Product Description

Product Description *1408 CHANNELS, ISTAR AND HYBRID ENGINE The i93 GNSS receiver features 1408 channels that track full constellations and frequencies, it's powered by an integrated RF-SoC processor and iStar CHCNAV technology. With a 15% gain in survey-grade GNSS RTK performance in challenging environments, the i93 delivers reliable and accurate positioning data. The built-in hybrid engine and proprietary narrowband interference mitigation technique boost GNSS data quality and signal tracking capabilities by more than 20%, ensuring the best possible GNSS RTK performance for any application.
*VISUAL NAVIGATION AND STAKEOU The i93 integrates star-level cameras to provide an immersive 3D visual navigation and stakeout experience. With LandStar software's 3D visual view, surveyors are guided by a clear, eye-catching directional arrow and real-time distance with the stakeout point marked directly on the ground. Moreover, 3D visual capabilities are also available for line stakeout and CAD-based map stakeout, making operations similarly effortless, intuitive, and efficient. This simplifies the stakeout process, allowing for quick completion in seconds and increasing efficiency by up to 50% for less experienced field operators.
*VISUAL SURVEY AND 3D MODELING The i93 is a cutting-edge surveying tool that combines GNSS, IMU, and two premium global shutter cameras with video photogrammetry technology. It delivers survey-grade 3D coordinates from real-world video capture in seconds, making it easy to survey previously hard-to-reach, signal-obstructed, and hazardous points in the field, such as under overpasses, under eaves, and near power poles. With its dynamic panoramic video capture and automatic image matching, the i93 improves productivity by up to 60%. Automatic high-speed continuous shooting and adjacent image generation with up to 85% overlap ensure high processing success. Surveyors looking for ease, speed, and accuracy will find the i93 an ideal tool. *Efficient IMU-RTK survey made easy The i83 GNSS built-in IMU for automatic pole tilt compensation boosts surveying, engineering, and mapping speed and efficiency by up to 30%. Real-time, interference-free initialization of the 200 Hz inertial module is achieved in just 5 seconds and ensures 3-centimeter accuracy over a pole tilt range of up to 30 degrees. Measuring and staking out with the i83 GNSS is fast, easy, and highly productive, whether you are an engineer, site foreman, or surveyor
Data Collector HCE700
Software Landstar8 LandStar 8 is built around easy-to-use workflow management and an intuitive graphical interface designed to help efficiently complete high-precision surveying and mapping projects. LandStar™ 8 is versatile and integrates all surveying features for different applications, including construction surveying, control point measurement, native CAD project support, fast and accurate points, lines and surfaces stakeouts, road construction, GIS data acquisition, and more. Its comprehensive industry-standard data import and export formats allow LandStar™ 8 to be seamlessly integrated into existing software environments and ensure instant productivity Specifications

GNSS Performance
Channels	1408 channels
GPS	L1C, A, L2C, L2P(Y), L5
GLONASS	L1, L2, L3
Galileo	E1, E5a, E5b, E6*
BeiDou	B1I, B2I, B3I, B1C, B2a, B2b
QZSS	L1, L2, L5, L6*
PPP	B2b-PPP
SBAS (EGNOS Support)	L1, L5
GNSS Accuracies
Real time kinematic (RTK)	H: 8 mm + 1 ppm RMS V: 15 mm + 1 ppm RMS Initialization time: < 10s Initialization time: 99.9%
Post-processing kinematic (PPK)	H: 3 mm + 1 ppm RMS V: 5 mm + 1 ppm RMS
Post-processing static	H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS
Code differential	H: 0.4 m RMS | V: 0.8 m RMS
Autonomous	H:1.5 m RMS | V: 2.5 m RMS
Visual survey	Typical 2~4 cm, range 2~15 m
Positioning rate	1 Hz, 5 Hz and 10 Hz
Time to first fix	Cold start: < 45 s, Hot start: < 10 s Signal re-acquisition: < 1 s
IMU update rate	200Hz
Till angle	0-60°
RTK tilt-compensated	Additional horizontal pole-tilt uncertainty typically less than 10 mm + 0.7 mm/° tilt
Environments
Temperature	Operating: -40°C to +65°C (-40°F to +149°F) Storage: -40°C to +85°C (-40°F to +185°F)
Humidity	100% non-condensation
Ingress protection	IP67 (according to IEC 60529)
Drop	Survive a 2-meter pole-drop
Vibration	Compliant with ISO 9022-36-08 and MIL-STD-810G- 514.6-Cat.24.
Waterproof and breathable membrane	Prevent water vapor from entering under harsh environments
Electrical
Power consumption	UHF/ 4G RTK Rover w/o camera: Typical 2.8 W Visual Stakeout/Visual Survey: Typical 4 W
Li-ion battery capacity	Built-in non-removable battery 9,600 mAh, 7.4 V
Operating time on internal battery	UHF/ 4G RTK Rover w/o camera: up to 34 h Visual Stakeout/Visual Survey: up to 24 h UHF RTK Base: up to 16 h Static: up to 36 h
External power input	9 V DC to 28 V DC
Hardware
Size (D x H)	Φ 152 x 81 mm (Φ 5.98 x 3.19 in)
Weight	1.15 kg (2.54 lb)
Front panel	1.1'' OLED Color Display 2 LED, 2 physical buttons
Tilt sensor	Calibration-free IMU for pole-tilt compensation. Immune to magnetic disturbances. E-Bubble leveling.
Cameras
Sensor pixels	Global shutter with 2 MP & 5 MP
Field of view	75°
Video frame rate	25 fps
Image group capture	Method: video photogrammetry. Rate: typically 2 Hz, up to 25Hz. Max. capture time: 60s with an image group size of appr. 60MB.
lllumination	Starlight-grade camera. OmniPixel®-GS technology. Maintain full color at illumination levels as low as 0.01 lux.
Communication
SIM card type	Nano-SIM card
Network modem	Integrated 4G modem: TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM
Wireless connection	NFC for device touch pairing
Wi-Fi	Wi-Fi IEEE 802.11a/b/g/n/ac, access point mode
Bluetooth®	5.0 and 4.2 +EDR, backward compatible
Ports	1 x 7-pin LEMO port (RS-232) 1 x USB Type-C port (external power, data download, firmware update) 1 x UHF antenna port (TNC female)
Built-in UHF radio	Rx/Tx: 410 - 470 MHz Transmit Power: 0.5 W to 2 W Protocol: CHC, Transparent, TT450, Satel Link rate: 9 600 bps to 19 200 bps Range: Typical 3 km to 5 km, up to 15 km with optimal conditions
Data formats	RTCM 2.x, RTCM 3.x, CMR input / output HCN, HRC, RINEX 2.11, 3.02 NMEA 0183 output NTRIP Client, NTRIP Caster
Data storage	8 GB internal memory. Support 128 GB external expansion
Compliance with Laws and Regulations
International standards	NGS Antenna Calibration, IEC 62133-2:2017+A1, IEC 62368- 1:2014, UN Manual Section 38.3

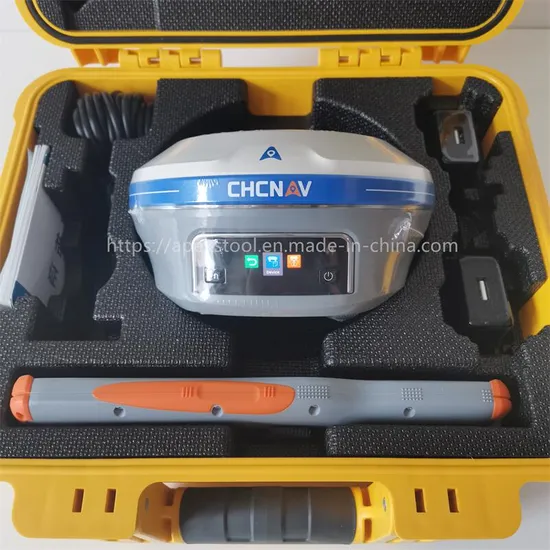

Package Company Profile Shanghai Apekstool was founded and based in Shanghai, specializing in the manufacturing and sales of Surveying equipment. We are dedicated to being a professional provider for survey equipment. Our goal is to provide the best products and excellent service to our customers all over the world.We have been involved in the geographic mapping industry for 6 years. We supply all products with reasonable prices and real-time support upon our own professional experience and high-quality supply chain. Like gnss rtk, total station, theodolite, auto level, rotary laser level, laser level and surveying accessories. We have sold to more than 156 countries and build our stable market.We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save so much time for communication. Our business is growing and we invite you to be part of the success.
