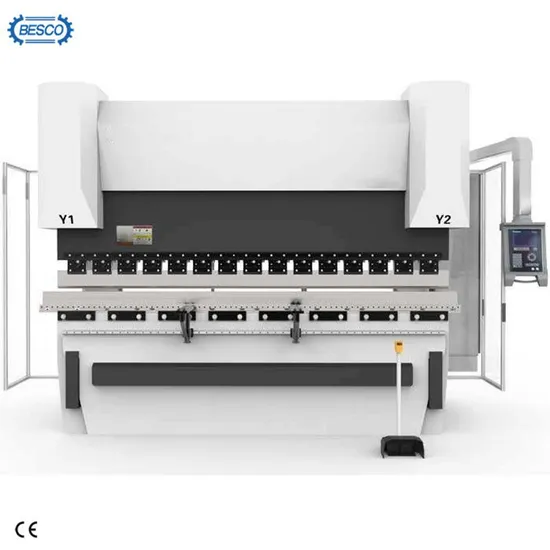

Hydraulic CNC Press Brake Steel Bending Machine

Product Description

Product Description
Main Features
Product Application
Press brake can be divided into manual press brake, hydraulic press brake. Manual press brake is divided into mechanical manual press brake and electric manual press brake, hydraulic press brake by synchronously and can be divided into: torsion axis press brake, electric-hydraulicpress brake.Hydraulic press brake according to the movement mode and can be divided into: down moving and up moving type

Type	Nominal Pressure (KN)	Length of Table (mm)	Distance between Housings (mm)	Throat Depth (mm)	Stroke (mm)	Open Height (mm)	Main Motor(KW)
WC67Y-63/2500	630	2500	2050	250	100	335	5.5
WC67Y-63/3200	630	3200	2670	250	100	335	5.5
WC67Y-63/4000	630	4000	3300	250	100	350	5.5
WC67Y-80/2500	800	2500	2050	250	100	335	7.5
WC67Y-80/3200	800	3200	2660	250	100	335	7.5
WC67Y-100/2500	1000	2500	1950	320	140	385	7.5
WC67Y-100/3200	1000	3200	2650	320	140	385	7.5
WC67Y-100/3600	1000	3600	3000	320	140	385	7.5
WC67Y-100/3600	1000	4000	3200	320	140	385	7.5

Main Features1) The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology,high strength and good rigidity og machine. 2) Double hydraulic oil cylinder is applied for upper transmission, prouded with, mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation, as well as high precision.
3) Electrical cintrol and manual fine-tuning, mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital diaplay device,easy and quick in use.
4) Upper dies is fitted with deflection compensation device.Certifications:
Detailed Photos
Siemens motorServo motor can make the control speed, position accuracy is very accurate, the voltage signal can be converted into torque and speed to drive the control object.Siemens servo system can achieve excellent dynamic positioning and accurate motion control sequence, and rich Siemens servo motor products compact structure, can achieve excellent dynamic characteristics and operational efficiencyHydraulic System
Hydrostatic transmission or transmission is a hydraulic mechanical system that USES the hydraulic pressure of a pressurized system to power a fluidMechanical Clamps
Upper die is a kind of machanical hook-type clampings, higher safety when exchanging dies.
Mould
1.The mould is made of high toughness material with good strength, toughness and wear resistance.
2. mold material of the bending machine is 42CrMo, which is an alloy with high strength and quenched and tempered steel
