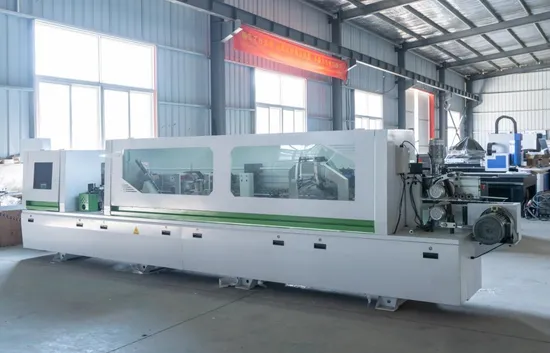

8 Functions High Speed Automatic Edge Bander for Furniture Wood PVC Tape Edge Banding Machine

Product Description

Product Description
Functions:
Pre-milling, gluing, edge cutting, end trimming, rough trimming, fine trimming, corner trimming, scraping, buffing, slotting and so on.
Advantages:
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.
Application:
The machine is suitable for such plates: MDF, block board, solid wood board, particle board, polymer door plates, plywood etc, straight line edging and trimming. Function: pre-milling, gluing, edge cutting,end trimming, rough trimming, fine rimming, corner trimming, scraping, buffing, slotting and so on. Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers. Specification

Model	GD-2400
Panel Feed Speed(m/min)	13m/min
Edge Thickness	0.4-3mm
Edge Width	15-55mm
Edge banding height	12-60mm
Panel thickness	8-30mm
Mini work Panel Width	> 80mm
Mini work Panel Length	>120 Mm
Heating power of plastic box	1.5kw
Plate preheating power	0.3KW
End cutting motor power	0.55kw * 2 1200r / min200HZ
Transmission motor power	2.2KW
Polishing motor power	0.2kw*2 1400r / min 300Hz
Fine trimming motor power	0.75kw*2 1800r / min 300Hz
Total power	10kw
Air pressure	0.9MPA
Machine weight	1500KG
Machine size	7200*1000*1800mm

Detailed Photos

Pre-milling
There are two counter rotating shape cutters and control by independent air cylinders, allow milling front edge and back edge without tear out. Ensure right angled and chip free work piece edges.
Pressing and gluing
The glue mechanism adopts a special structure to gelatinize the plates and the costing materials uniformly, and that ensures a more solid conglutination
End Trimming
The end trimming is through a precise guide track movement, and it adopts the automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
Rough trimming and fine trimming
The rough and fine trimming is use for trim the extra edge tape, and it adopts automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly
uct Detai
Corner Rounding device
Can shaped the panel then looks more beautiful. The function is a necessary step for cabinet door
Edge scraping device
The cutting process of trimming and straight line movement should be eliminated by profiling and scraping. The secondary wave
trace caused by the cutting shall make the upper and lower parts of the plate more smooth and tidy.
Polishing
The high-grade cotton polishing wheel is used to polish and polish the plate after trimming, to remove the redundant glue stains and burrs, so that the edge sealing effect of the plate is more natural, and the edge sealing strip and the plate are integrated.

Applications
Edge Banding Machine is mainly used for straight edge banding of solid wood, chipboard, laminated wood board, medium density fiberboard, etc. It can make the side of the work piece more smooth, durable and beautiful.

After Sales Service
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know
