High Voltage Pulse Solar Powered Electric Fence Energizer
Basic Info.
Model NO.
EF-B1S020
Application
Chicken
Power Source
Solar
Heating and Ventilation Equipment Type
None
Epidemic Prevention Equipment
None
Blade Type
None
Computerized
Non-Computerized
Certification
CE
Condition
New
Load Storage Energy Output
2 Joules @ 5
Peak Storage Pulse Voltage Output
10kv
Load Pulse Voltage Output
4.3kv @ 500 Ω
Waterproof
IP68 Outdoor Use
Power Source Battery
DC12V/9ah (Not Included)
Battery Charge Voltage
DC16-24V
Operates Days Without Sunlight
up 8
Monocrystalline Solar Panel Voltage Outp
DC18V
Monocrystalline Solar Panel Current Outp
0.64A
Monocrystalline Solar Panel Power Output
11W
Magnet Induction Power Switch
on/off
Pulse Voltage Output Indicator Light
Red
Charging Indicator Light
Green
Battery Fully Charge Indicator Light
Blue
No Vegetation
up to 50 Miles
Transport Package
Carton / Pallet
Specification
CE, FCC, ISO9001: 2000, RoHS, E-MARK
Trademark
veise
Origin
Guangzhou China
Production Capacity
50000
Product Description

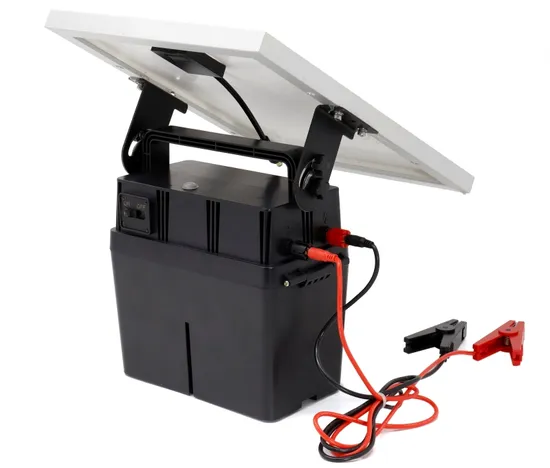

High Voltage Pulse Solar Powered Electric Fence EnergizerLoad Storage Energy Output: 2 Joules @ 500 Ω
Peak Storage Pulse Voltage Output:10 KV
Low Impedance Design for Long Distance of Energy Output
Low Power Consumption Design for Long Operates of Battery
11 Wats High Efficiency Poly Monocrystalline Solar Panel Fast Charges the Internal Battery to Power the Fence Line
One Compact Design with Handle,Battery and Solar Panel
Solar Panel is Easy to Adjust for Seasonal Light Availability
No Need Replacement Battery Or Inconvenient Recharging Use
Waterproof Rating:IP68 with Lightning Protection for Outdoor Use
Electronics are Sealed to Prevent Damage by Insects and Moisture
ABS Battery Box can be Disassembled and Assembled at Will
Portable Solar Powered Electric Fence Energizer Suitable for Horse, Sheep, Cattle, Cows, Alpaca, Goat and Could Improve Your Fencing with Bargain Livestock Farming Equipment.
Specification
| Solar-Powered Energiser | |
| Model Number:EF-B1S020 | |
| Load Storage Energy Output: 2 Joules @ 500 Ω | |
| Peak Storage Pulse Voltage Output: 10KV | |
| Load Pulse Voltage Output: 4.3KV @ 500 Ω | |
| |
| Maximum Power Use:50mA | |
| Power Source Battery:DC12V/9AH (not included) | |
| Battery Charge Voltage:DC16-24V(directly input into the solar DC interface) | |
| Operates Days without Sunlight:Up 8 | |
| Monocrystalline Solar Panel Voltage Output(Vmp):DC18V | |
| Monocrystalline Solar Panel Current Output(Imp):0.64A | |
| Monocrystalline Solar Panel Power Output(Pmax):11W | |
| Magnet Induction Power Switch: ON/OFF | |
| Pulse Voltage Output Indicator Light:Red | |
| Charging Indicator Light:Green | |
| Battery Fully Charge Indicator Light:Blue | |
| Built-in Low Voltage and Charges Protection Circuit to Support Long Battery Life | |
| Multi-Wire Distance Rating:No Vegetation: Up to 50 miles,Average Vegetation: Up to 20 miles,High Vegetation: Up to 10 miles | |
| Suitable to Control: Poultry, Fowl, Cattle, Horses, Pigs, Sheep, Goats, Rabbits |
