China Factory Direct 1000W 2000W 4000W 6000W Exchange Platform Metal Plate Fiber CNC Laser Cutting Machine for Sheet Metal Competitive Price

Product Description

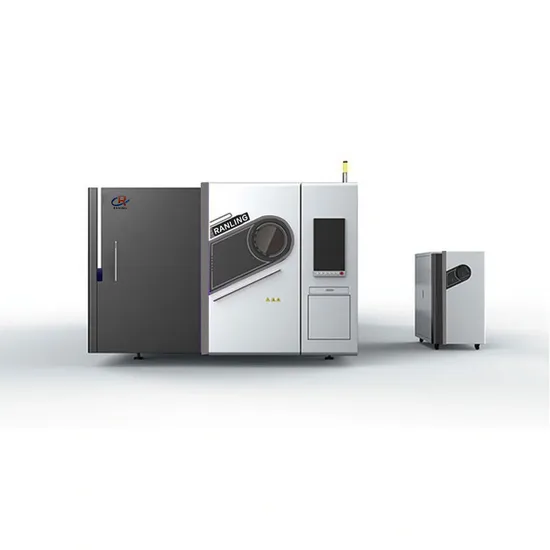

Protective Fiber Laser Cutting Machine
The protective fiber laser cutting machine adopts fully enclosed laser protective cover, cast iron bed, chain exchange platform and professional CNC cutting system to provide users with powerful cutting ability and efficiency. At the same time, the top imported parts and strict assembly process ensure the machine safe, efficient and high-precision stable operation.
Processing Materials:
Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
Plate Welding Bed 1. It is welded by a piece of steel plate.
2. The first choice of most laser manufacturers. After the aging annealing process is achieved, it can be used for 20 years. The machine bed must be selected for high-power machines. The production cycle of the plate welding bed is relatively short, easy to organize production, high cutting efficiency, and long service life.
A.Brand: Raytools/WSX/Precitec/OSPRI or others brands customer's requirements;If it is mainly thin plates, below 3000w, recommend:WSX/Raytools
B. Automatic cutting head.It improves the processing efficiency of the fiber laser cutting machine - the thick plate piercing time is reduced; when processing workpieces of different materials and thicknesses, the machine can automatically and quickly adjust the focus to the most suitable position.
The automatic focus will reduce the phenomenon of overheating due to overheating of the plate.

Laser Power: 500W/1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/15000W/20000W/30000W Brand: IPG/RAYCUS/MAX/or others brands customer's The higher the power, the thicker the cutting thickness.

Servo and Motor Brand:Yaskawa, Panasonic, Mitsubishi,quality assurance

2.Rack:
Brand: YYC HIWIN Reduce frictional resistance and improve high-speed performance of linear guides.

What's the difference between fiber laser, YAG laser and CO2 laser working on metal material?

Laser source	Fiber laser	YAG laser	CO2 laser
Beam quality	Best	Good	Poor
Speed	Fast	Slow	Slow
Electrical efficiency	High	Common	Low
Reliability	Best	Good	Poor
Maintenance	Free	Complex	Difficult
Remote processing	Free	Complex	Difficult
Initial investment	High	Common	Low

Product Parameters

Model	RL3015
Laser machine cutting area	3000x1500mm(Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm)
Fiber Laser Power	500w/750w/1000/1500/2200/3300/4000/6000/8000/12000/20000W
Laser wave length	1064nm
Transmission system	Gear + rails (we have standard brand,we can also produce as your requirements)
X.Y axis location accuracy	±0.03mm
X.Y axis repeat location accuracy	±0.03mm
X.Y axis max moving speed	30m/min
Max cutting speed	1--30m/min(it will according to metal material and laser power)
Cutting thickness	Detailed in the following cutting thickness
Application Material	Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal
Transport	Shell frame for Exchange table Machine 20 Container for Water chiller +Controller

Detailed Photos

Quality Inspection
Application
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters,Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc
Exhibition&Certifications
Cutting Samples:
Company Profile
Founded in 2011,Ranling Intelligent Equipment Technology Co., LTD is a manufacturer specialized in the research development and production of laser cutting machines, laser welding machines and CNC Aluminum profile cutting machines for windows and doors. On the basis of technology development, we have taken in a group of experienced personnel who are talented in senior management marketing and skills of producing. We are located in Jinan Shandong province, one of the best professional machine industries in China. All the products are certificated by CE and comply with international quality standards and are greatly appreciated in a variety of different markets at home and at abroad.
CNC Fiber Laser Cutting Welding Machine for Metal
CNC Machine for Aluminum Profile Window and Door

After Sales Service
1. 1 year Guarantee for the whole machine. 2. 12 months Guarantee and free spare parts supply during this period. 3. 24 hours online service 4. 3-7 days lead time 5. We will provide the Instruction Book, Operational manual and Training Video 6. Provide technical support for the whole lifetime online 7. TT/Ali Trade Assurance payment
Packaging & Shipping
FAQ:
1.How to choose the right to for me? A : Tell us the following information
1) Metal material for welding: choose the most suitable model.
2) Laser welding metal material thickness: the power of the laser generator.
3) Line of business: We sell many products and advise on this line of business.
2.Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and after shipment we will give you CE/Packing
list/Commercial Invoice/ Sales contract for customs clearance.
3.If we want to learn how to operate the machine, Can you provide it?
A:Yes, we can. We can provide the online training by video. We also provide free training course in our company.
4.How to install and use it?
A:We have the instruction Book, Operational manual and Training Video inside the machine. We also can provide the training online by free
