Reverse Osmosis Desalination Plant for Sea Water and Brackish Water

Product Description

RO water desalination equipment
TDS range
Brackish water :1,000 mg/l to 10,000 mg/l.
Saline water/salt water: ≥10,000 mg/l
Brine water:10,000-35000mg/l,seawater ≥ 35000mg/l
Components:
Raw Water Pump
Multiple Media Filter
Filter Media
Activated Carbon Filter
Filter Media
Dosing Device
Dosing Pump
Dosing tank
Cartridge Filter
Filter element
RO Unit
High Pressure Pump
RO Membrane
Membrane Housing
Pressure Gauge
Flow Meter
Assembly Valve
Frame
Washing System
Washing Pump
Washing Tank
Pipes & Fitting
Electric Control System
Control Panel
PLC Programmable
High&Low Pressure Switch
Conductivity Meter
Electrical instrument
Wire & cable

Optional items
Raw Water Tank
Pure Water Pump
Ozone Generator
Oxygen generator,Ozone Generator and Air compressor All-In-One
Ozone Mixer Tower
Purified Water Tank
UV Sterilizer
Technical Parameter

Model	Flow rate (L/h)	Power(KW)	Water use efficiency	RO membrane	Dimension
					L X W X H(mm)
RO-500L	500	1.5	≥ 50%	4040	1650X630X1800
RO-750L	750	2.5	≥ 50%	4040	1870X630X1850
RO-1000L	1000	2.5	≥ 50%	4040	1870X650X1850
RO-2000L	2000	3.5	≥ 50%	4040	2440X650X1750
RO-3000L	3000	4	≥ 50%	4040	2440X620X1850
RO-5000L	5000	7.5	≥ 50%	8040	2000X900X1800
RO-6000L	6000	9.5	≥ 60%	8040	3000X900X1800
RO-8000L	8000	13.5	≥ 60%	8040	3000×900×1800
RO-9000L	9000	14	≥ 60%	8040	4000X900X1800
RO-10T	10T/H	19	≥ 60%	8040	3000X900X1800
RO-12T	12T/H	19.5	≥ 60%	8040	4000X900X1800
RO-15T	15T/H	23	≥ 60%	8040	4000X900X1950
RO-20T	20T/H	28	≥ 60%	8040	5000X900X1950
RO-30T	30T/H	55	≥ 60%	8040	7000X900X1950

RO system process flow
Single stage RO system Two-stage RO system

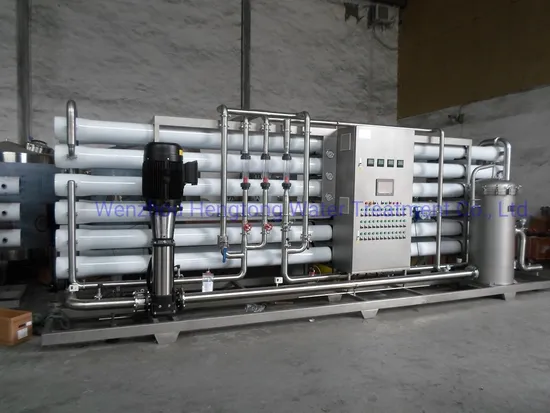

Water treatment equipment show
FAQ 1. Q: What products you provide?
A: We are specialized in RO system, EDI system, UF system,Water softener, Sewage water treatment equipment, etc.
2. Q: What's the information you need before order?
A1: what's your raw water ?
A2: what's the capacity per hour of the equipment ?
A3: What's the application of purifier water ?
3. Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.
