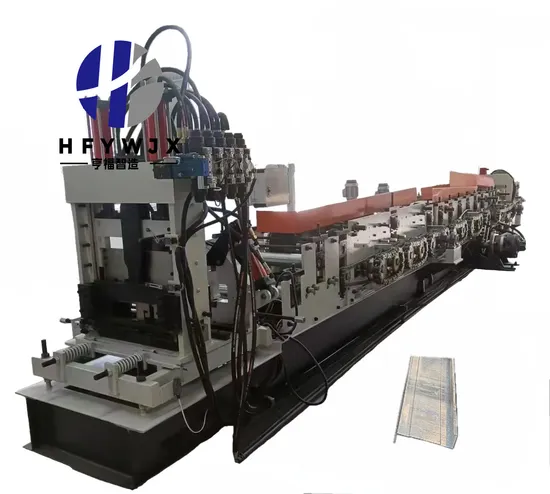

Full Automatic CZ Purlin Profile Light Gauge Steel Frame Roll Forming Machine

Product Description

Basic Info.

Model NO	CZ steel equipment
Condition	New
Color	Blue or Accordng to Customers′request
Cutter Type	Hydraulic Cutting
Control System	Controlled by PLC
Transmission Method	Hydraulic Pressure
Automation	Full-Automatic
Type of Driven	Chain Transmission
machine frame	500H steel and 450H rigid welding
Shaft Material	45#
Specification	9300mm*1400mm*2000mm
Type	Cold Roll forming machine
Customized	Customized
Warranty	1 year
Place of Origin	Hebei, China
Production Capacity	400/Set

Product Description
CZ steel equipment is a cold-formed steel equipment used in the production of "C-type, Z-type" steel structures in the steel structure industry. The finished products produced by machinery and equipment are "C/Z-shaped steel (purlins)", which are mostly used for supporting the beams and wall beams of buildings, factories and workshops.
CZ type steel equipment is a single roll forming unit that can produce various specifications of CZ type purlin products. It mainly consists of passive loading, leveling device, punching device forming host, hydraulic station and computer control system for shearing after forming. It can be customized to high standards according to customer needs.

1. Equipped with 13 sets of CZ exchange modules, CZ switching can be completed by manually rotating 180 degrees
2. Adjust the size of the specifications through the electric button.
3. The specifications can be freely changed
1. Save conversion time and reduce production waste.
2. Convenient processing of large and small orders.
3. Convenient and fast conversion
4. Easy to operate, reducing the difficulty for employees to operate.
5. Save space and fully leverage advantages.
Pattern diagram:
Detailed Photos

Product specifications:

Parameter	Q195,Q235,Q345
Forming speed	25/min (according to the number of holes)
Cutting method	Infinite shear system
Cutting blade material	Cr12MoV
Roll material	GCr15
Hydraulic station	Hydraulic station power 22KW

Company Profile

Hebei Hengfu Roll Forming Machine Co., Ltd. is a professional manufacturer of cold-bending forming equipment and its complete set of automated production lines. With advanced production equipment and product development and design capabilities, the products are at the leading level in the industry with the advantages of high rate, high precision, high flexibility, and low processing loss, and the products are favored by industry customers.
Our company's main products include: color steel plate equipment, glazed tile equipment, floor decking equipment, CIZ steel forming equipment, composite sandwich panel assembly line equipment, car compartment panels, dust removal anode plates and other equipment. We can design and manufacture special models according to user requirements, provide users with technical guidance, production installation, commissioning, and after-sales one-stop service.
In recent years, a large number of products have been sold to more than 50 countries and regions including Russia, India, the United Kingdom, Australia, Kazakhstan, etc., and have been well received by customers at home and abroad.
Certifications:
Company:
Workshop:
Customer & EXPO:
Transaction transportation:
FAQ

Q1: Are you a trading company or a factory?
A1: We are a manufacturer located in Cangzhou, Hebei. We have our own Having their own product design team. Welcome to visit our factory and inspect the quality of our machines on-site
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5: Can you finish the machine during the delivery time?
A5: We will finish the machine in time according to determined lead time.
