Automatic Extrusion Blow Molding Machine to Make Small Plastic Bottle Plastic Drum

Product Description

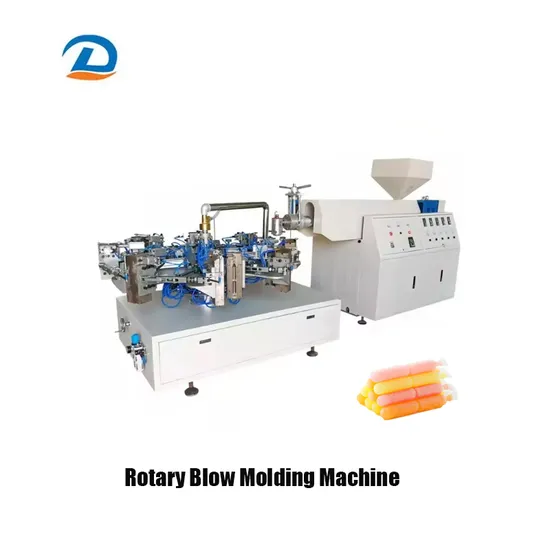

small plastic tube/ice freeze pops/ice fruit juice molding machine
Product Description
Multifunctional PE HDPE LDPE Bottle Automatic Blow Molding Machine With CE Certificate is suitable for producingPP/PE/PU/PC/PVC/PETG/HDPE/LDPE/ABS/..... plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

Our Advantages
small plastic tube/ice freeze pops/ice fruit juice molding machine Working principle : one step " extrusion-blow molding " forming. plastic blow molding machine It suitable for LDPE, HDPE, PP, PS raw material etc. plastic extruder adopt frequency conversion energy-saving motor to adjust the speed, not only can achieve the requirement of different product by the range of the adjustment speed, but also the extrusion parison is quite stable, ensure the unity of the product weight. The thermoplastic by the melting and plasticizing of the extruder through the extruder machine's head form the extrusion parison, and then the parison go into the mould, entering the compressed air, blow up the parison, cooling and forming, take the product out from the mould, knock out the nozzle, the circle is complete.
Product Parameters

Technical parameter	YSD-XZB/XSJ-1	YSD-XZB/XSJ-2	YSD-XZB/XSJ-3
Equipment composition	4-working-position blow machine with 45 extruder machine	6-working-position blow machine with 55 extruder machine	8-working-position blow machine with 65 extruder machine
Max volume of the product ml	800	1200	1500
Max diameter of the product mm	80	100	110
Mould dimension ( L* W * H ) mm	120×118×300	120×118×300	120×118×300
Production capacity PCS / day	15000-80000	20000-120000	20000-160000
Gas consumption quantity m3 / min	0.4
Screw diameter mm	45	55	65
Long radius rate		25:01:00
Plasticizing capacity kg / h	25	40	60
Electric machinery power kw	5.5	7.5	11
Total power kw	14	17	22
Weight kg	1500	1800	2000
Appearance dimension ( L * W * H ) mm	3000×1200×1500	3300×1200×1500	3400×1300×1600
The suitable raw material	PE / PP / PS / PVC
The method of adjusting the speed	Frequency conversion

Application
Detailed Photos
Our team

FAQ
1. Can you guarantee your quality if we order on you ?
Of course.Best quality is our principle all the time.You can be assured on our production.
2.What should I do if we are not able to operatethe the machine when we receive it?
Operation manual guides you the installation.Besides, we haveprofessional after-sale groupto customer 's site to solve any problems.weprovide 7*24 hours on-line technical support.
3.How could I get the spares on machines?
We will send extra sets of easy broken spares andaccessories likeo ring etc.Non-artificial damagedspares will be sent freelyduring 1 year 's warranty.
4.How to maintain such a machine ?
Please clean every part after filling thus can givelong using life of machine and make a carefullyclean 3 times a year.
