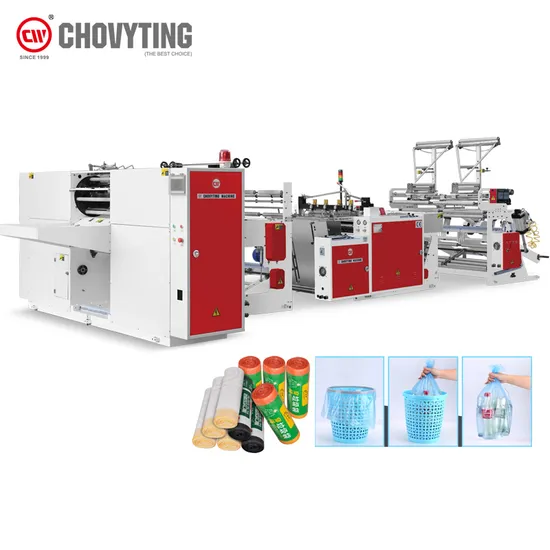

Fully Automatic Biodegradable Decomposable Star Sealing Plastic Garbage Bag-on-Roll Poly Trash Bag Coreless Making Machine

Product Description

Product Description
Brief Introduction:
This machine is producing rolling bag (non-stop and auto change finish roller),for garbage bag on roll,star seal bag on roll,vegetable bag on roll and table bag on roll,S bag on roll,Servo-driven system , fully auto exchange system ruduce the labour force.with shuttle system,make the bag length up to 10meters.
Optional device:
T-shirt bag on roll device;
Hot slitting device;
In-line gusset device;
Technical data:

Model	CW-1000PR+C2	CW-10000PR+C2+ST2
Unwinder width	900mm(Single line)	1200mm (Single line)
	300mmx2 (Double line)
	900mm(max.)
	Maximum unwinding width when C folding
Unwinder diameter	ф 1000mm (max.)	ф 1000mm (max.)
Length of bag making	250-10000mm	250-10000mm
Bag making speed	250pcs/min	250pcs/min
Max Depth of side gusset		30-100mm
Line speed	Cored - 80m/min	Cored - 80m/min
	Coreless - 100m/min	Coreless -100m/min
Rewinding width	Cored - 600mm(Single line) 300mm x 2 (Double line)
	Coreless - 600mm(Single line) 300mm x 2 (Double line)
	200mm(Double line)
Film unwind width		Maximum at C-fold 900mm
Max.diameter of rewinding	ф160mm	ф160mm
Finished roll exchange times	Coreless 6 rolls/min	Coreless 4 rolls/min
Film thickness	HDPE 0.015-0.04mm	HDPE 0.015-0.04mm
	LDPE 0.02-0.08mm	LDPE 0.02-0.08mm
Total power	≈18.8KW	≈18.8KW
Machine dimension[LxWxH]	6600X3300X1900mm	8600X3600X1900mm
Machine weight	2900kg	2900kg
Air compressor	6HP (Excluding air compressor)

Sample Bag
Detailed Photos Unwinding Part1.Unwinding adopts air cylinder automatic load design.
2.Automatic stop design when rolls film finish or damage. 3.The unwinder can make 1 line big bag,or 2 lines small bag.
Star Fold for double lineMaking double line star seal bag,folding before sealing&cutting device
HEAT SEALING AND PERFORATION PART1. With photocell tracking unit for printed bag making
2. Regarding sealing system,adopt continues transportation swing , the film running non-stop,servo motor driver, length size of bag is 250mm-10000mm.
3. Perforation and sealing are set at the same place,in case the sealing line is changed and affect the perforation.
4. Up and down sealing knife independent temperature control. Rewind part1.Fully automatic design-without core rewinding,automatic positioning,automatic finished roll exchange system.
2.Newly fully automatic design-with core automatic feeding,automatic positioning,automatic finished roll exchange device.
3.Rewinding traction adopt inverter automatic control rewinding speed (with brake motor) Company Profile
