C6236F Horizontal Heavy Duty Lathe Machinery with Ce

Product Description

Feature
Hardened and ground bed ways.
Gears in headstock precisely ground to reduce noise.
Kinds of threads.
Electric system is reliable and safe.
Electromagnetic brake can be amounted when needed, and color at user option
Main Specification

Model		C6236F	C6240F	C6250F	C6260F
CAPACITY	Max.swing over bed	360mm	400mm	500mm	600mm
	Max.swing over cross slide	190mm	230mm	330mm	330mm
	Max.swing over gap	520mm	560mm	660mm	760mm
	Effective length of gap	200mm
	Center Distance	750\1000\1500mm			2000mm
	Bed Width	360mm
HEADSTOCK	Spindle hole	52mm
	Spindle nose	ISO-C6
	Spindle taper	MT6
	Spindle speed(Number)	(9steps)40-1400rpm
FEEDS	Metric threads range	19kinds 0.25-14mm
	Inch threads range	49kinds 2-40inch
	Moudle threads range	11kinds 0.5-3.5mπ
CARRIAGE	Max.travel of top slide	95mm
	Max.travel of cross slide	180mm	200mm	250mm	250mm
	Max.size of toolshank	20*20mm2
TAILSTOCK	Dia.of tailstock sleeve	65mm
	Taper of tailstock sleeve	MT4
	Max.travel of tailstock	140mm
MOTOR	Main drive motor	4KW		5.5KW	7.5KW
	Coolant pump motor	125W
PACKING L*W*H	Center Distance(750mm)	225*115*175cm
	Center Distance(1000mm)	245*115*175cm
	Center Distance(1500mm)	295*115*175cm
	Center Distance(2000mm)	345*115*175cm
N.W/G.W	Center Distance(750mm)	1350/1750kg	1400/1800kg	1500/1900kg	1600/2000kg
	Center Distance(1000mm)	1450/1850kg	1500/1900kg	1600/2000kg	1700/2100kg
	Center Distance(1500mm)	1600/2000kg	1650/2050kg	1750/2150kg	1900/2300kg
	Center Distance(2000mm)	1750/2150kg	1800/2200kg	1900/2300kg	2050/2450kg

Standard Accessories
3-jaw & 4-jaw; Steady rest & follow rest;
Face plate; Drive plate; Thread-cutting diameter; Longitudinal touch stop; Work lamp; Coolant system; Full-length splash guard; Foot brake and brake ribbon; Change gears; Dead centre and centre sleeve; Oil gun; Padding; One whole set spanner.
Optional Accessories
Rapid travel
Live centre
Digital readouts (SINO)
CE-conformity (Chuck guard and Tool-post guard)
Magnetic electrical brake
Taper cutting function Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

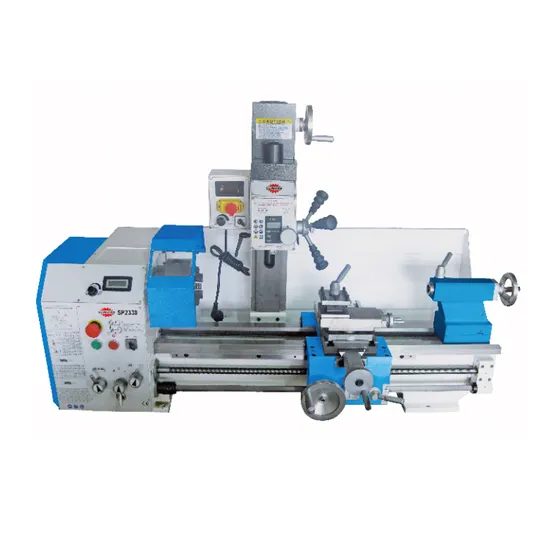

Machines's pics:
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
