New Design Breeder Farm Equipment Broiler Breeder Feeder for Chicken Farm

Product Description

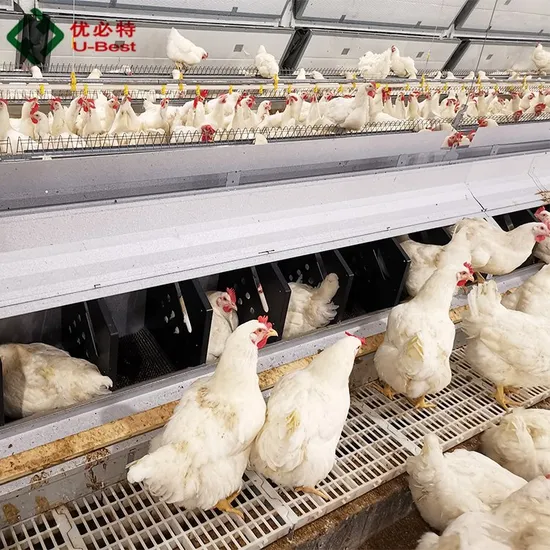

Automatic chain feeding and pan feeder poultry equipment for chicken breeder
[U-Best]

Welcome friends from all over the world! Let us become better farmers.
Product Description

Eg:	96m x 14m chicken house
	2 chain feeding lines for female chicken, 1 pan feeding line for male chicken, 2 nipple drinking lines
	6000 breeder chickens

(Automatic chain feeding and pan feeder poultry equipment for chicken breeder)


(Layout of chicken house)
Characteristic:
1. High strength steel corner wheel is firm and durable, with graphite copper sleeve in the middle, which is self-lubricating during operation and free from maintenance.
2. The egg collecting and laying boxes on both sides of the nest are made of hot-dip galvanized plate + ABS plate + imported artificial grass mat. The floor area is small. The design conforms to the habits of chickens and effectively reduces the proportion of eggs outside the nest. The egg transportation system is designed to Ke reduce the broken egg rate and dirty egg rate.
3. The integrated rolling forming trough can effectively protect the zinc layer of the plate and ensure the accurate size of each trough.
4. Extruded light shield sheet, wide design, smooth surface, effectively reduce wind resistance.
Detailed Photos
Grille
Chickens can eat feed in an orderly
manner
prevent chickens from stepping onthe feed
Chain conveyor
36m/min, high working efficiency
Trough
Stainless steel galvanized sheetstrong and sturdy
Corner
Chain conveyors make turning easier
High practicality,cheap price.
Easy to and removal cleaning
Automatic control, easy tomaintenance
Stereo feed can increase thestocking density
Germany imported motor reducer,high durability.
Green light at night Height adjustable
Driver
Strong motor power andgood quality.can drive 250m long chainfeed line
Feed bin
The feed box can be customizedin size, because the seal ensuresthe cleanliness of the feed, and sensors can be installed to controthe amount of feed.
Company InformationU-Best Husbandry Equipment Co., Ltd. is located in the cultural World Kite Capital - Weifang, China, where enjoys convenient access to major transportation networks. Main systems: 1.Main feed line system 2.Automatic pan feeding line system 3.Automatic nipple drinking line system 4.Automatic ventilation system 5.Cooling pad system 6.Environment controller 7.Spraying&disinfecting system 8.Heating system/Heater
Automatic ventilation system This system controls climate conditions,fresh air,humidity and temperature in poultry shed. It is vital for growing birds,including air inlets,axial flow fan and butterfly cone fan for your choice.
Exhausts fan: (1).Model: Centrifugal box fan;Hanging fan;Shutter/Butterfly cone fan;Speed viable fan. (2).Size: 24'',36'',50'',50''cone (3).Features: - makes a minimum wind resistance and optimum performance -Belt: automatic tensioning device improves transmission efficiency and prolongs service life -Frame: high quality hot-dip galvanized steel sheet -Motor: three-phase motor with 3C certification, high efficiency and energy-saving, safe and reliable (4).Advantages: -air admission and exit sides for a high air flow rate -ensure optimum operation for lower energy costs -minimal air resistance -low noise level -stable,robust and simple construction -made of polypropylene for high corrosion resistance and a long service life -easy to assemble and easy to install in the building Detailed parameters of 24" fan:

Flow amount	10600 m³/h
Size(L*W*H)(mm)	750*750*450 mm
Noise level	≤70DB
Power	0.37kw
Voltage	380V/220V

Detailed parameters of 36" fan:

Flow amount	20800 m³/h
Size(L*W*H)(mm)	1000*1000*450 mm
Noise level	≤64DB
Power	0.37kw
Voltage	380V/220V
Current	1.6A
Weight	66kg

Detailed parameters of 50" fan:

Flow amount	43070 m³/h
Size(L*W*H)(mm)	1380*1380*450 mm
Noise level	≤65DB
Power	1.1kw
Voltage	380V/220v
Current	2.8A
Weight	88kg

Detailed parameters of 50" cone fan:

Flow amount	49452 m³/h
Size(L*W*H)(mm)	1460*1460*580mm
Noise level	≤65DB
Power	1.1kw
Voltage	380V/220v

Air inlets: Features: (1).Use: with hood type for breeder; with mesh type for broiler (2).Winch: Manual or Auto. Advantages: 1.With UV resistant additive, air inlet has stronger anti-aging ability, longer service life. 2.The unique structure on window edge making it more closely and firmly. 3.Wind deflector can ensures a better ventilation effect. 4.Double spring ensures excelling sealing. 5.Flexible opening with anti-bird nets.
Certifications
Packaging & Shipping
Packaged and transported
1) Shipment by FCL or LCL. 2) Delivery time: 10-15 working days after the deposit. 3) Package: · Feeder pan: Ensemble, in carton box; · Feeding pipe: 20pcs per bunch, in bulk; · Hanging system: in carton box; · watering pipe fitted with nipple, in plastic bag, 20pcs per each; · Water spare parts like medicator, regulator,cup in carton box.

Our Service:
1. Poutlry farm design and construction
2. Offer CAD layout drawing
3. Installation : two installation engineers will be sent to farm site guid installtion and give training for equipment operation
Our warranty :
1. all plastic products are made of virgin raw material such as the feed pan , water drip cup ,clips , air inlet 15 years 2. Nipples : 10 years
3.The accesorries such as the bolts ,nuts ,pulley ,water winch ,rope clips are stainless steel
4. Feed motors from Italy brand Transtechno
5. Auger from South Africa technical system
6. Feed sensor from Germany
7. Control box :Schneider brand or china zhengtai brand
We also can provide you overvalue services :( one -stop service for poultry farm needs )
1. Poultry House site Selection
2. Poultry House Design and Construction Preparation Guidance.
3. poultry house construction
4. Breeding Equipment Installation and guid operation
FAQ In order to give you a reliable price,please let us know: 1.Size(length*width*height)
2.Quantity(discount based on order)
3.Weight of chicken when you sale to the market(the rearing period,From -- weeks)
4.Types of chicken:laying hens or broiler chickens
5.Types of breeding:in cages or on the ground. 6.Poultry house location and local climate condition like snowfall,rainfall,wind and earthquake.
