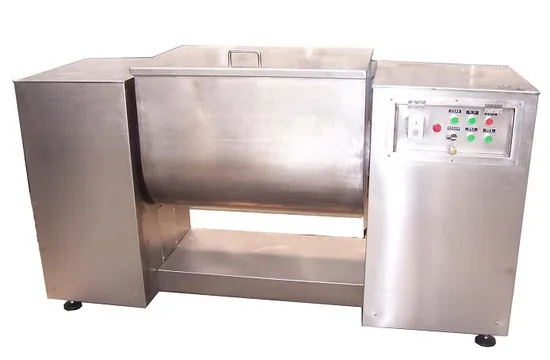

CH50 Trough Type Mixing Machine

Product Description

CH50 Trough type mixing machine (blending machine, blender)
Descriptions:
CH10--CH200 Trough type mixing machine is designed for thoroughly mixing powders or pastes. It is a horizontal trough type mixer with single stirring arm. The stirring arm is removable so that is easy to clean. The part is surfaces which may touch the mixing materials are made of stainless steel, So they are good corrosion - resistant, the mixing trough can automatically reverse for discharge and the missing time can be automatically controlled. Mixing efficiency is 70%
CH10A--CH200A Trough type mixing machine is designed on the base of the former CH10--CH200. The configuration employ stainless steel that is easy to clean and maintaining and meet GMP standard
Technical parameters:
ITEM TYPE
CH10 CH50 CH100 CH150 CH200
Trough capacity L 10 50 100 150 200
Mixing arm speed r/min 25 24 24 24 24
Mixing periods 5~20 5~20 5~20 5~20
Main motor kw Y06324 0.25KW Y90S-4 1.1KW Y100L1-4 2.2KW Y100L-4 3KW Y112L-4 4KW
Tilting motor kw Hand Y802-6 0.75KW Y802-6 0.75KW Y802-6 0.75KW
Overall dimensions mm 600*280*450 920*420*820 1100*440*900 1400x600x1100 1400x600x1200
B type size 600*280*500 920*420*820 1100*440*900 1370x650x1100 1370 x 650x1100
Weight kg 40 200 250 750 800
