Farm Machine Tractor Pto Driven Ditch Long Arm Flail Mower

Product Description

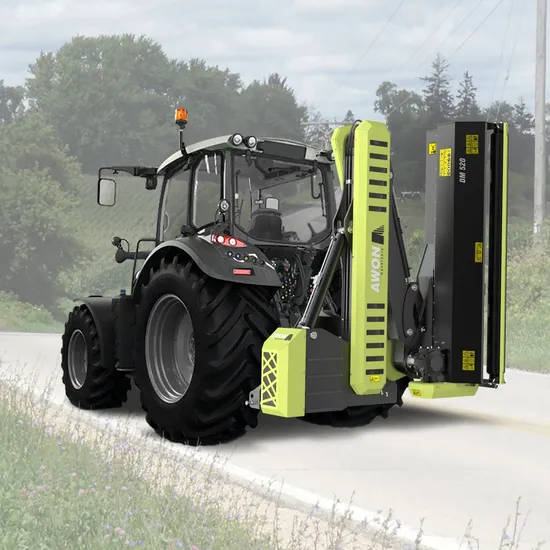

DM are rear mounted,PTO driven flail mowers for tractors. power demand 140-180HP.DM has a hydraulically driven, extendable telescopic dipper arm,with which the mower has high work reach of 5200mm.As standard the control of the arm is done with the use of cable control panel,equipped with levers and a joystick. DM 520 is a Super Heavy Duty Mower that can chop heavy brush including grasses, debris, sticks, vines, branches. The head is attached to a mechanical arm allowing you to swing the mower beyond your up to 90 degrees for hedge or hillside work or down 45 degrees for ditch or bank work. It cuts finely and leaves the cuttings on the ground making it an excellent choice for those places where you could cause damage by throwing debris such as Highway mowing and park maintenance as well as Making Handling & Transport Much More Stable & Safer.
Advantages
* Mounting on 3-point hitch at the rear of the tractor linkage Cat III * Gearbox with a freewheel and input to 1000rpm for safety and easy use of the machine.
* The belt drive ensures quiet operation of the machine.
* The wide range of working widths allows the machine to be adapted to the working conditions and the type of terrain
* The body made of extremely durable and wear-resistant steel significantly extends the service life of the machine.
* Perfect ground following and even cutting height
* Mowing of scarps, embankments, drainage ditches
* PTO shaft as standard
* Enables rise of the machine when obstacle is met
* Feature high horizontal reach, up to 5850 cm which enables easy obstacle passing (e.g. road signs) without changing tractor's position
* Possibility of working within the inclination of + 90° and -45°
* Owing to the paralellogram arm works perfectly for heavy-duty road maintenance Assignments
* suitable for shredding branches of up to 35 mm in diameter

AWON GROUP founded in 2006 which headquarter in the Netherlands is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. With much effort of these years, AWON machinery gradually grows up to a pioneer in modern agriculture from designing to manufacturing a wide range of agricultural implements which used in commercial crops and field crops, including: Mower, mulcher, wood shredder, cotton baler, straw baler etc. With AWON GROUP's excellent design concepts and reliable product performance to help users improve operating efficiency, reduce usage costs, and increase profits, thereby protecting the ecological environment and achieving sustainable development of agriculture and nature.
The following are our patent certificates: Design Patent (mulcher), Utility Patent (branch mulcher, mulcher blades, pick-up branch mulcher and telescopic mower)
The following are our original hand-painted drawings, originality has always been our pursuit!
