Aluminum Soda or Beer Can Filling and Seaming Machine

Product Description

Product Description
Soda Drink Tin Can Filling and Sealing Machine
Product Description
Machine description :
It is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip long-distance control system according to the customers’ request. It is the preferred equipment for the medium beer and beverage plant.
Machine picture:

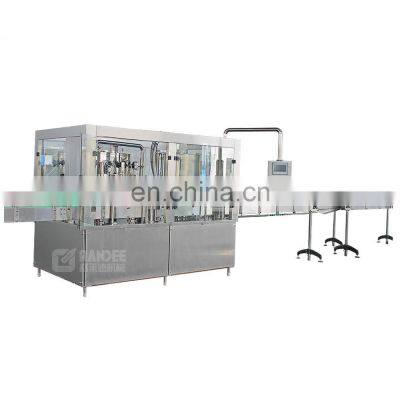

Filling and Sealing Machine
Can Sealing Machine
Washing can machine
Main technical data:

Model	GD-4T150	GD-4T250	GD-4T350
The number of sealing head	1	6	6
The number of filling head	12	18	32
Production capacity	30~170cans/min	30~250cans/min	0-400cans/min
Can Diameter	52.5~99mm	52.5~99mm	52.5~99mm
Can Height	39~160mm	39~160mm	39~160mm
Power	2.0kw	5.5kw	7.5kw
Weight	2500kg	3800kg	5500kg
Dimension	1850x1240x1900mm	3050x1750x1900mm	3800x1900x1900mm
