Ljc Primary Crushing Machine Rock/Mining/Impact/Grinding/Limestone/Mobile/Stone/Ore Jaw Crusher for Quarry with Casting Mantle Spare Part

Product Description

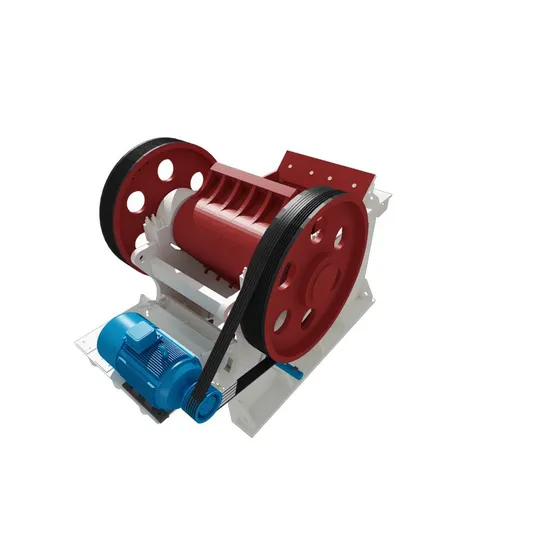

Primary Crushing Machine Rock/Mining/Impact/Grinding/Limestone/Mobile/Stone/Ore Jaw Crusher For Quarry With Casting Mantle Spare Part Product Information
This series of products is a new generation of products developed by our company, which adopts a deep cavity shaped symmetrical crushing cavity design to maximize the feed size, output and crushing ratio. The movable jaw is made of high quality cast steel and driven by large cast iron belt pulley and flywheel. Its good balance makes the crusher without anchor bolt installation, integrated motor installation, widely used in all kinds of the hardest and highly corrosive mineral rock crushing operations.
Technical Details

Model	Motor Power(KW)	Processing capacity (t/h)	Maximum feed port size (mm)	DischargingGranularity(mm)
LJC-90	90	80-220	550	70-250
LJC-110	110	200-550	750	80-250
LJC-125	160	250-800	800	120-300
LJC-160	250	400-1200	1020	180-400

Advantages
1.The use of advanced manufacturing technology and high-end production materials; 2.The movable jaw assembly is made of high quality cast steel parts, and the heavy eccentric shaft is processed by forging billet, so that the machine has extraordinary reliability.More durable; 3.The bearing seat adopts integral cast steel structure to ensure complete coordination with the crushing frame and greatly enhance the radial strength of the bearing seat; 4.Crushing chamber adopts symmetrical "v" shape structure, so that the actual feeding port width is consistent with the nominal feeding port width; 5.Equipped with wedge discharge port adjustment device, than the old gasket adjustment more simple, safe and fast; 6.All the machines in this series choose larger and more durable eccentric shaft bearing than other crusher of the same specification, which has higher bearing capacityForce and effective labyrinth seal greatly prolong the service life of bearings; 7.The latest use of toothed guard plate, increase the effective length of jaw plate, improve output; 8.Centralized oil supply, easy maintenance.
Process
Applicable Materials
Applicable to the production of all machine-made sand in the sand and gravel aggregate industry, including common limestone, river pebble, basalt, granite, iron ore, construction waste, etc.Different models match different materials.
Packing
Company Profile
Chongqing Sanming Heavy Industry Co., Ltd. was established in 1994 as a comprehensive equipment manufacturing company that integrates scientific research, production, sales and service. Adhering to the business philosophy of "honesty, pragmatism and innovation", and focusing on the product orientation of "intelligence, high efficiency, energy conservation and environmental protection," with 30 years of innovative development, Sanming's products now include stone crusher and screening equipment, casting spare parts, intelligent control systems, and EPC general contracting projects, covering numerous industries such as mining, building materials, highways, railways, bridges, coal, metallurgy and chemical industry. It has become a national high-tech company.
Certification
Main Product
Workshop
Finished product workshop
Production workshop
Foundry workshop
Test platform
Create a complete equipment test site for customers to more intuitively display product effects.Including jaw crusher, cone crusher, impact crusher and other machines
Project Case
After Sales Service
We win market respect with quality and win customer trust with professional services.
We carefully inspect and accept each production line, so that customers can put it into production with confidence.
We carry out quality tours all year round, and always adhere to the win-win development concept of "same heart, same virtue, same trade, same sharing".

Exhibition
FAQ
1.Can I have a sample order?
A: Yes.
2.What about the leading time ?
A: 15 working days.

3.Do you have any MOQ limit ?
A: MOQ is 1 set.

4.Can you provide OEM and ODM services?
A: Yes.

5.Will you provide pre-sale services ?
A: Yes. SAMYHI consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
6.Is our after-sales service excellent ?
A: Yes. SAMYHI's skilled technicians are available to assist with onsite installation,commissioning & training on request.
7.Will we provide technical support ?
A: SAMYHI provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.

Primary Crushing Machine Rock/Mining/Impact/Grinding/Limestone/Mobile/Stone/Ore Jaw Crusher For Quarry With Casting Mantle Spare Part
