Decal jumbo roll Adhesive Paper Cutting Machine

Product Description

Product Description
Product Description

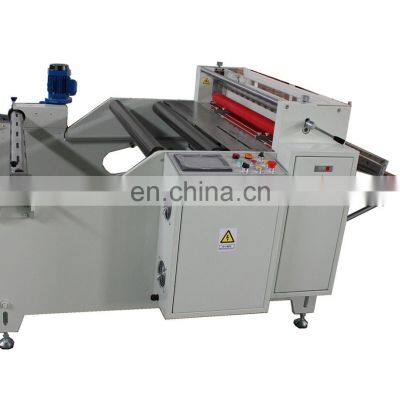

Adhesive Paper Cutting Machine

Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine

PLC ----- use famous brand MITSUBISHI, Delta which you will easily maintenence in your local place

Machine body ----- 16mm to 22mm thickness steel wall , it is very solid that to make sure machine stable when running

PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material

Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material

Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part

Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety

12 month electronic parts guarantee after machine arrived your place

Purpose
It is applicable for the cutting ofpaper, PVC film, insulation sheet, Mylar, foam, industrial tape,
electronic tape and various inch setting, entirely broken and partially broken electronic materials.

Model	DP-800
Voltage	4HP
Power	380V
N.W.	1500KG
Sheeting Length	0.1-9999.9mm
Sheeting width	1-800mm
cutting thickness	0.05-12mm
Sheeting precision	±0.05mm
Machine size	1700x1650x1350mm
Shaft diameter	3 inch / 76mm
unwinding paper diameter	600mm max
conveyor belt length	700mm

Product Detail

driving force type	electric
driving system	Servo Motor
max feeding width	360mm/500mm/800mm etc
Control	PLC control
kiss cutting	need air force driving type
Product Keywords	Adhesive Paper Cutting Machine,Decal Paper Cutting Machine,Jumbo Roll Paper Cutting Machines

Quality assurance:12 month after sale Warranty Service (excluding Wear and Tear item )
