Perfect Design Dental Equipment China Dental Chair Dental Chair Unit

Product Description

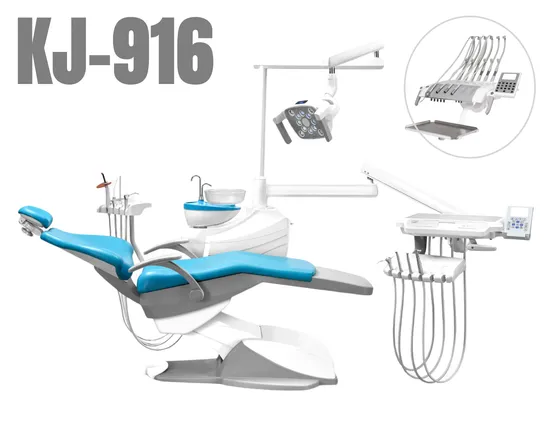

Full Casting Aluminum Electric Dental Chair Orthodontic Dental Chair
Product Description: 1.Using the material of full aluminum , the cover base on single shot shaping technique with streamline design that the unit is very stable, the modelling effect feeling stronger and advanced; large unit box design, not only looks great, but also easier to daily maintain; 2.Luxury movable ceramic spittoon is convenient for patient and doctor to use and clean; 3.Luxury assistant tray with key-touch control system , easy to operate; 4.Multifunctional foot pedal, the chair position can be adjusted directly; 5.Double armrest configuration, more convenient for doctor and patient to cure; 6.The design of the cushion using hand make sewed ultra fiber leather is super comfortable completely in conformity with ergonomic,makes easy and relax for patients. The chair using connected design,when backrest to the fall, the seat with angle upward, maintain the maximum with the northern posture.Do not drag the patient's clothes, another convenient compensation principle can relief the hunchback phenomenon, make patients more comfortable; 7.Our company design the totally enclosed luxury operation lamp ,durable,energy-saving . that is safer and more fashionable; 8.Luxurious glass tray to settle tissue, cups, and other problems. Top-mounted instrument tray also cater some doctors like, three holder not only allow doctors to use it more easily, also do not have to worry about hand piece or 3-way syringe drop off . at the same time,have down tool tray for the doctor to select. 9.Hand piece tube use silicon gel , it is not easy to aging; 10.The plastic tube from American , durable ;The ceramic spittoon easy to clean; 11.The basic configuration of saliva ejector with high and low suction , 3-way syringe are easy to use; 12Valve series use stable quality products (valve, 3-way syringe are from Shanghai, XIONGYI, etc.) ;the whole unit equipped with key-touch control system. 13.Use hand-made sewed ultra-fiber leather configuration, uneasy to fade, easy maintenance;Intelligent control system can set the position of the chair according to the doctor's preference or habit, and the setting is only automatic with a key, which is convenient for doctors to use and improves efficiency. Have 12 memories , so it is easy to operate; 14.The tool tray has LCD display, is clearly, and the adjustment settings can be selected according to the requirements; 15.Italy Solenoid valves Small size, reliable action, convenient maintenance.

Description of technical parameters and functions of goods
Basic configuration	Standard configuration, latest software technology
	Working conditions
1	Water pressure:0.2~0.4Mpa
2	Air pressure:>=50L/Mpa
3	Gas flow rate:>=50L/min
4	Environmental condition: Use in well-ventilated indoor environment
5	Environmental temperature:5ºC~40ºC
6	Relative humidity:<=80%
	Basic parameter
1	Power Supply:AC220V,50Hz
2	Input power:1000W
3	Dental chair
3.1	Height of cushion surface from ground:Min<=410mm,Max>=760mm
3.2	Headrest mobility>=140mm
3.3	Lean back of backrest:110º~170º
3.4	Length of dental chair:1900mm
3.5	Rising or falling speed of chair >=300mm/min
3.6	load of chair>=135KG
4	Dental unit
4.1	Rev of high speed turbine hand piece:>=300000r/min
4.2	Rev of Low speed air motor hand piece:>=14000r/min
4.3	LED lamp:8000-15000Lux;Color temperature:3000-5000K
4.4	Mouthwash temperature:35-45º
4.5	Saliva ejector suction :pump rate>=400ml/min
4.6	Spittoon launching speed>=1000ml/min
4.7	Tool tray: the lean of maximum load <=3º
	Standard configuration
1	Dental unit
1.1	3-way syringe Made in China(two sets); assistant advice with constant temperature system
1.2	Saliva ejector suction (1 set)
1.3	Saliva ejector with high suction(1 set)
1.4	Water purified system (1 set)
1.5	Movable three axis LED lamp(1 set)
1.6	LED film viewer (1 set)
1.7	computer control with main tray (1 set)
1.8	Multifunctional foot switch (1 set)
1.9	Movable ceramic spittoon (1 set) with flushing device
2.00	Air bottle (1 set)
2	Dental chair
2.1	Electric dental chair (direct noiseless motor)
2.2	Seat position electronic control setting (three preselect)
2.3	Sanitary cushion and backrest
2.4	Lifting and backrest movements using structure compensatory function
3	doctor chair
3.1	The upper and lower seats can be adjusted
3.2	Gas cylinder
3.3	Full cast aluminium patient chair
3.4	Movable armrest
	Description of product features
1	Pass CE certification, ISO 13485 certification.
2	Key-touch button,according to the doctor's needs, transferred to the working position.
3	Tool tray has LCD display is clearly.and the adjustment settings can be selected according to the requirements.

Factory Configuration:
1	High speed handpiece connector	2sets
2	Low speed handpiece connector	1set
3	3-way syringe (cold & hot )	2pcs
4	Operation lamp	1set
5	Film viewer	1set
6	Saliva ejector (strong and weak)	2sets
7	integrated ceramic spittoon	1set
8	Automatic cup filler
9	Movable assistant device
10	Built-in water purified system	1set
11	24V D.C noiseless motor	1set
12	Sanitary cushion and backrest	1set
13	Doctor's stool	1piece

optional instruments:
1	Dental camera system
2	LED curing light
3	Ultrasonic scaler system
4	High speed handpiece
5	Low speed handpiece
6	air compressor

About us:
Foshan Keju Medical Apparatus Co.,Ltd was established in 2009 and it is a professional manufacturer integrating the design, development, production and distribution of dental equipment. Since establishment in 2009, our company has always been taking "technology leading, service is tenet" as our principle. We are absorbing internationally advanced techniques and production experience actively to keep our product update and satisfy the requirements of customers.
Packing:
FAQ: Q1:Are you a company or factory? Yes,we are a dental chair manufacturer in Foshan,China. Q2:What 's your advantage? KJ Dental founded in 2008,professional dental chair & dental chair spare parts manufacturer. Providing good after-sale service and competitive price. Q3:What is your warranty? The dental chairs will have one year warranty.If having any problems,you can send us photos,we will give you the spare parts for free. Q4:How about the delivery days? It depends on the quantity and model you order. Normally,we can finish 20container in 5-7days. Q5:What certificates do KEJU have? We have the ISO 13485:2003, EN ISO13485:2012,our product got the CE certificated. We also have different kinds of certificates and documents to meet with different foreign countries.For more information,pls contact us.
