10cbm 10m3 Mix Capacity Sy310c-6W Concrete Mixer Truck 6X4 340HP Left Rudder LHD Cement Mixer Concrete Machinery

Product Description

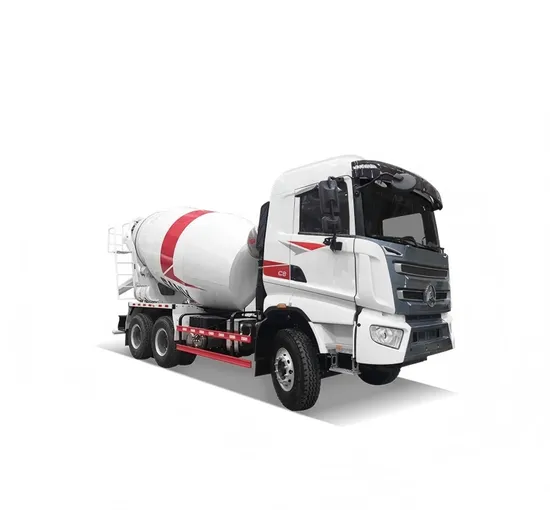

10CBM Mix Capacity SY310C-6W Left Rudder Concrete Mixer Truck
----------------------------------------------------------------------------------------------- Product Description
Specialized Cab
· Safe and secure
· Built for the driver
· Convenient ACCESS maintenance
· Attractive styling
· Panoramic monitoring (optional)
Improved Braking
· By making full use of exhaust valve braking technology, braking distance has been reduced by 15% and brake lining wear has decreased by 50%. It uses a high-volume air compressor, high quality piping, and new sealing technology that shortens air build-up time and brake response time.
Energy-saving Technology
· The engine dual power mode, coupled with the unique intelligent transmission's power matching technology makes a 10% fuel savings.
Low Deck Technology
· The frame is made of high-strength special steel plates, improving reliability and safety. It uses original subframe-free structure combined with the hollow front and back-end structure design, reducing the center of gravity by 100mm and making the vehicle lighter.
Leading Edges Steering Technology
· The large displacement power steering pump reduces operator effort by 40%. Optimizing chassis geometry and front axle steering angle reduces the minimum turning radius by 15%.
Anti-buildup Technology
· The three-section blade provides an efficient discharge angle.
· The flushing device, an innovative front taper, and a ball-crown connecting structure are installed at the rear taper, in order to clear stagnant aggregate from the dead space and to prevent aggregate from piling up at the front and rear tapers. Due to this, the residual rate at the discharge port declines to 0.4%.
Smart Operating Technology
· Each truck is equipped with a GPS system, which boasts five functions including vehicle monitoring, record/playback, alarm reporting, fleet management, statistics and analysis. With this information you can keep abreast of the mixer truck's location, maintenance items, discharge, etc. Maintenance Tips
· Dashboard-mounted monitor provides maintenance alarms for the truck's key components such as engine, axle, and transmission in order to facilitate maintenance schedule.
----------------------------------------------------------------------------------------------- Product Parameters

Chassis
Engine Brand	WP10.340E32
Cab	Cab CB318
Overall Specification
Curb Weight	13700 kg
GVW	37700 kg
Dimension (L×H×W)	9300×2500×3985 mm
Wheel Base	3720+1350 mm
Drum
Mix Capacity	10 m³
Feeding Speed	≥8 m³/min
Discharge Speed	≥5 m³/min
Water Tank Capacity	400 L
Engine
Displacement	9.726 L
Rated Power/Rev Speed	250/2200 kW/rpm

----------------------------------------------------------------------------------------------- Detailed Photos
