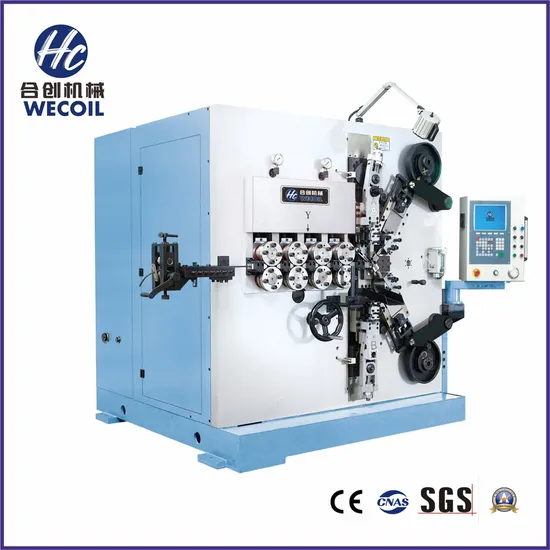

WECOIL HCT-680 6 axis mold spring machine

WECOIL HCT-680 6 axis mold spring machine

US$800.00-1,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HCT-680
Axis Count
6 Axis
Warranty
1 Year
Wire size for hard wire
3.0~8.0mm
Wire size for soft wire
3.0~10mm
Max outside diameter
120mm
Max pitch of spring
100mm
Feeding roller pais
4 pairs
Max feeding speed
60m/min
Feeding motor
15.0kw
Upper cutter motor
7.0kw
Down cutter motor
7.0kw
Cam motor
2.7kw*2
Pitch motor
2.7kw
Related wire decoiler
HCT-1000
Machine Packing dimension
L3200mm*W2050mm*H1500mm
Wire decoiler Packing dimension
L2100mm*W1900mm*H2360mm
Weight
6000kgs
Transport Package
Vacuum Packaging
Specification
L2000*W2100*H2200mm
Trademark
WECOIL
Origin
China
HS Code
84633000
Production Capacity
500 Sets

Product Description

WECOIL Spring Machinery--Professional for CNC Spring Machine over 30 years, the leader for CNC Spring Machine Industry.
Company Profile:Wecoil (Dongguan Wecoil Spring Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic Wire Feeding machine, the wire size covers 0.15mm to 20.0mm.
WECOIl Advantanges:1. The founder Mr. Lau has 34 years experience in CNC Spring Machinery Industry since 1986.
2. Over 20 different types of CNC Spring Coiling Machine, CNC Spring Forming Machine, CNC Versatile Spring Machine to fullfil clients with more choices.
3. 3000m² large production floor to guarantee enough inventory.
4. Adopt the most widely used Taiwan Hust Controller and Japan Sanyo/Yaskawa Motor and high-end precision bearings such as NSK/NTN/IKO.
5. All the workers, Assembly Team, Electrical Team, Spring Testing Team, Sales team, even the Packaging Personnel are with at least 7 years experience in Spring Machinery Industry which guarantee our machine with high performance. HCT-680--Machine Introduction:
WECOIL--Springs Samples tested on Wecoil Spring Machinery
WECOIl--Packaged with Vaccum Package Wooden Case and Loading
Purchasing Process
Wecoil High Quality professional pre-sale, sale and after-sale service. 1. Remote free technical support by e-mail or telephone, or the supplier can assign the technicians to the customers' factory for the technical support if necessary. Machine Pictures and sample testing video will be sent for confirmation before packaging and delivery. 2. WECOIL team will always provide professional and patient consulting service to help clients find the suitable solution. 3. Quick and safe shipment as per your requirement,such as the booking, container loading, and shipping documents etc... 4. WECOIL will provide technical support by email and phone, technicians will be available at your side if necessary. 5. One-year guarantee period exclude the easy torn parts. Any Consultations and Inquiries are welcome!
