Cheap Price High Precision CNC Lathe Milling and Turning Machine

Product Description

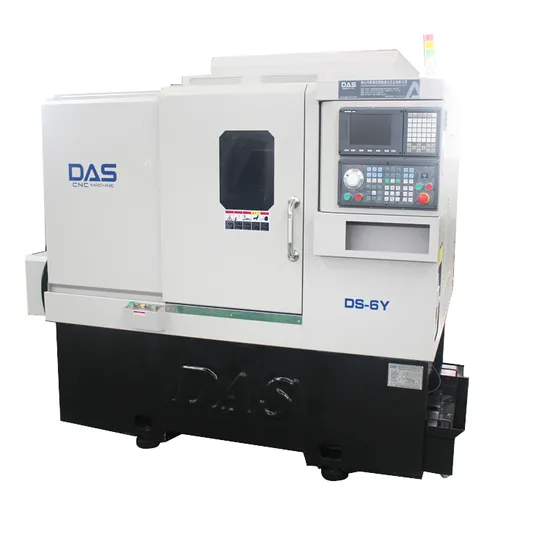

DAS Torno CNC Slant Bed cnc lathe Machine with Y axis Product Description
- Machine tool control system uses Taiwan SYNTEC 6TA-T3S system. Other company's numeral control system can also be used when user requires so.

- Machine body is cast in one piece with resin bonded sand, so it features strong vibration resistance and less deformation. The lathe bed tilts by 45° and the inclined placement of lathe carriage and tool holder will result in easy operation and chip removal. The machine tool has pleasant design appearance and less space occupation.

- Equipped with computer automatic lubrication system for the linear guide and ball screw forced lubrication, ensure that the guide rail and the service life of screw.

1. Super rigidity The body structure is one piece, with a solid base and a downfeed centre, 45° saddle design for good vibration damping and reduced deformation, providing a very stable base for the head and turret, 45° sloping bed structure for easy loading and unloading of steel and smoother chip removal.
2. Modern and popular control components The DAS machine is available with the optional FAUNC 0iTF control package and Siemens 828D control package, 8.4' display, 10.4' display, additional interfaces, etc.
3. Superb price/performance ratio The machine of German origin has the best components, such as SAUTER turret and NSK bearings, which guarantee the high precision performance of the machine series. At the same time we offer competitive prices, making the machine series superbly cost effective.
4. User-friendly design Minimal space occupation, but mostly in line with the actual working area, full protective cover, humanized aesthetic design, stainless steel telescope cover, providing a safe and clean working environment and more durable.
5. Rich choice Electric turret, servo turret, power turret, upgraded spindle power, upgraded spindle torque, upgraded cylinder and chuck inner diameter, drawer type cooling tank, tool probe, oil mist remover, etc. for customers to choose from.
6. High efficiency assembly line operation (optional) Thanks to the advanced truss drive, multiple machines can be combined together to complete a task, greatly reducing the drive time between each process and increasing efficiency.

Name	DS-5Y	DS-6Y
The style of installation tool	Gang type+power head	Gang type+power head
Adjacent tool change time (s)	0.3	0.3
Tool change style	Random	Random
Square knife knife holder (mm)	20X20	20X20
Round hole knife holder (mm)	φ20	φ20
With chuck size	5 Inch	6 Inch
Spindle speed (r/min)	1-4500	1-4500
Spindle bore (mm)	φ46	φ56
Center height (mm)	56	56
The maximum diameter of rotation (mm)	450	450
Spindle motor power (KW)	5.5	7.5
Minimum system Resolution	0.001	0.001
X/Z Axis stroke (mm)	1040/250	1040/250
X/Z axis fast moving speed (m/min)	24(Factory setting)	24(Factory setting)
X/Z axis Repetitive positioning accuracy (mm)	±0.003	±0.003
Taper (mm)	≤0.003/100	≤0.003/100
Card position size (mm)	≤0.003	≤0.003
X servo-motor (KW)	1.3	1.3
Z servo-motor (KW)	1.3	1.3
Y axis shaft up and down move motor power (KW)	0.85	0.85
Y shaft up and down movement transmission mode	Synchronous belt	Synchronous belt
(Hydraulic station (KW)	0.75	0.75
Water tank motor power (KW)	180W	180W
Cooling water tank capacity (L)	60	60
structure of power head	4*4 gear	4*4 gear
Live tool servo-motor (KW)	1.8	1.8
Live tool speed (rpm)	1-4500	1-4500
power head motor torque (mm)	5.5	5.5
Maximum clamping diameter (mm)	φ13	φ13
Max drilling diameter (mm)	φ13 Copper and aluminum	φ13 Copper and aluminum
Maximum tapping diameter (mm)	M8 Copper/M6 General steel	M8 Copper/M6 General steel
Bar feeder center height (mm)	1140	1140
Weight (KG)	2950	3000
Size (L*W*H mm)	2250x1500x1950	2250x1500x1950
Power (KW)	13	15
