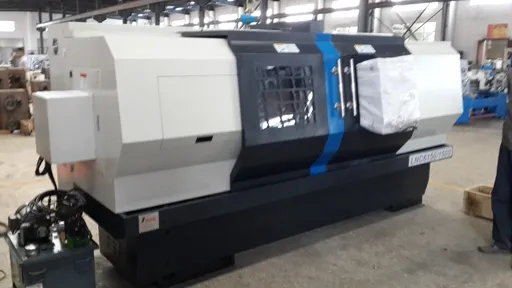

High-Precision CNC Lathe Machine with ISO Certification Smac Lnc6140b/Lnc6150b

Product Description

Item\Model		LNC6140
CAPACITIES	Max. swing over bed mm	420
	Max. swing over carriage mm	200
	Max. turning length mm	500,750,100,015,002,000
	Bed width	330
TRAVEL	X axis travel mm	230
	Z axis travel mm	1080
SPINDLE	Spindle speed rpm	150-600-2100 Infinitely Variable
	Spindle nose mm	C6
	Spindle taper	Metric 70
	Spindle hole mm	65
TURRET	Number of stations	4 (6)
	Tool shank size mm	25 x 25
	Indexing time sec	2
FEEDS	Rapid traverse of X axis mm/min	3000
	Rapid traverse of Z axis mm/min	6000
	Cutting feed and Z axis mm/r	0.005-100
TAILSTOCK	Taper of tailstock sleeve	MT5
	Dia. of tailstock sleeve	65
	Travel of tailstock sleeve	100
MOTOR	Main motor power kw	5.5
	X and Z axis motor Nm	6 11
L x W x H mm		2420 x 1567 x 1512
Net weight kg		2600
Type of CNC Controller		SINUMBERIK 802C/GSK980T
Old model		CK6140

Feature:
The machine adopts ISO international code keyboard manual data input, it is also provided with program of power cut-off protection and the functions of automatic diagnosis, and with rs 232 interface.
Longitudinal and cross feeds are effected by ball leadscrews.
Either vertical or horizontal 4-station or 6 station tool post or gang tools can be selected, the post is located on precision contrite gears with a high repeated positioning accuracy.
Both chuck and tailstock are supplied with hydraulic or manual type.
The surface of the bedways id supersonic frequency hardened and precision ground with a long service life.
The spindle bore size is 80mm. The spindle system is high in the rigidity and accuracy, there is no vibration when turning with a cutting depth of 8mm.
Variable spindle speed can be programmed as two ranges, that is high one and low one. Company Profile
