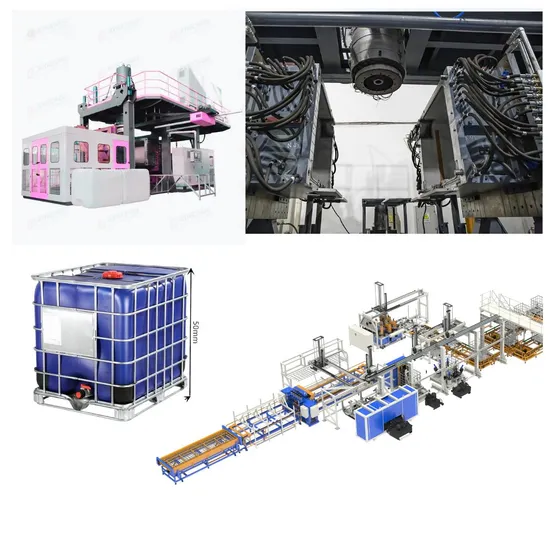

China1000L Storage Small Water Tank Blowing Molding Machine

Product Description

Xinzhou IBC Cage Production Line Bottom Pallet Corner Welding IBC Machine
Product Description
Machine DescriptionMF IBC Frame Welding machine is able to finish each mesh production in 60s.
The double feeding rack design was able to feed the pipe, while the main welder is working.
MF system was used to ensure the welding quality for the frame.
110N-190N twisted force can be reached of each welding point. Machine Consist by following parts:
Double layer per-feeding table The elevated working platform in the navigation table allows the main welding frame to constantly working while workers putting pipes in to the per-loading navigation table. The servo motor is used to transport the navigate table more stable and accurate. The pipe position mold is all processed by CNC machines to ensure the accuracy level of metallic gird. Main weld Frame Four set of MF transformer are used to control 6 set of welding electrodes to ensure good welding quality for each welding spot. The two-side piano type welding style can speed up the welding process. Each metallic grid mesh can be finish with one minute. Upper and lower air cylinder design can ensure the flat welding position. Welding electrode with screw design can make the each electrode more durable. Unloading Table ( automatic unloading available with robotic arm)
.CNC processed machine frame is used to ensure the bending size.
. Servo hydraulic motor can be used to ensure the stability for the machine
.Special bending balancing system was used to ensure frame diagonal size
.Different pipe shape can be applied in the same machine just by change moulds
.CNC processed machine frame is used to ensure the hole position
. Servo hydraulic motor can be used to ensure the stability for the machine
.Different pipe shape can be applied in the same machine just by change moulds
.There are a variety of square tube and round tube punching shape design, production experience.
Adjustable clinching arm 1. According to the different IBC metallic cage design, the adjustable clinching arm can made wider working range for the machine.
2. Hydraulic and pneumatic design for clinching arm can make the machine more efficient.
3. The clinching arm is also designed to automatic jointing the two side of the pipe together
Hydraulic clinching mold
Clinching mold with hydraulic system can make tight clinching spot for the pipe to prevent the metallic cage to crack.
Hydraulic pressure station
Auto-sending device available
Auto-sending device for metallic cage can make the auto cage production more smooth and efficient.
Automatic Hole Making and Punching Machine 1. Simply change the mold block, you can meet the needs of
different pipes for punching, and the mold is easy to change.
2. The servo hydraulic system has the characteristics of fast
response, small inertia and high precision.
3. High degree of modularization of each part of the equipment, which can be configured to improve the degree of automation according to customer requirements.
Running Process:
Auto tube loading -Frame welding--bending--locking--hole punching--unloading--base frame welding--base frame loading--manual screw for base frame and outer frame

Product Name	IBC frame production line	Style	single row /double row
Max welding width	1200mm	Max welding length	4250mm
Brand	XINZHOU	Colour	blue/yelllow/custom
Equipped Power	350kVA/400kVA	Place of Product	Zhejiang Province,China
Voltage	3p 380V	Material	Galvanized Pipe
Tickness of the pipe	1-2mm	duty cylce	20%
Diameter of the pipe	14-20mm	Frequency	50HZ/60HZ
pipe loading method	manual/2 labors	Cable size	≥70mm3
working capacity	350-450(480-550) pcs/8 hours	air pipe size	G1
labor demand	2-3 labors	Water pipe size	G1 1/4

Product Features-Tank Sending System: 1. This system is suitable for factories that separate the blowing machine workshop and the cage workshop. 2. The test tanks are transported by the conveyor to the cage workshop. No human intervention required. 3.Tank Sending System 4.IBC Bended,Clinching and Punched Cage Placement Area 5.Welded Pallet Stocking Area 6.Auto Pallet Assemble Path 7.Pallet Welding 8.Rotating Cage and Pallet Assemble AreaSafe Passage 9.Pallet Plate Stocking Area/ Auto Feeding Company Profile
