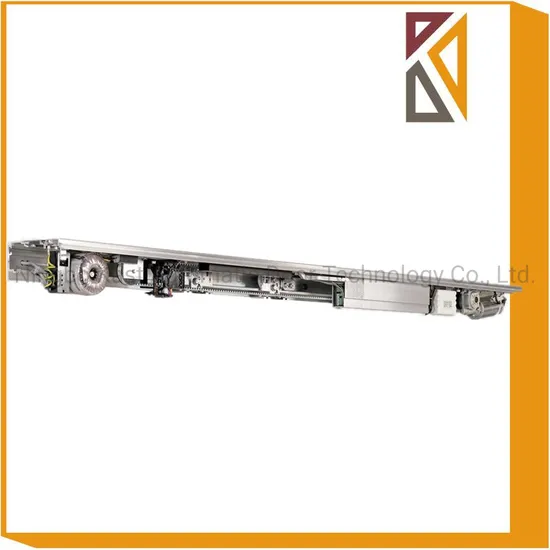

Geze Ecdrive T2 Linear Automatic Sliding Door System
| Negotiable | 20 Sets (MOQ) |
Basic Info.
Model NO.
Geze Ecdrive
Type
Sliding
Open Style
Program Selector
Opening Type
Geze Radio Programme
Special Function
Emergency Escape
Color
Silver
Certification
TUV, ISO9001, CE
Position
Commercial
Surface Finishing
Finished
Motor
Gr63*25 Dunkermotoren Motor
Control
Geze Dps
Holding Weight
120kg*2
Door
Frame Door/Frameless Door
Power Supply
110V-220V
Battery Emergency
Yes
Fire Terminal
Yes
Control with Bus Interface
Yes
Speed
80cm/S
Control with Fault Memory
Yes
Self-Learning
Yes
Application
Hotel,Bank,Airport,Supermarket,Shop
Made by Geze
Yes
Transport Package
Carton
Specification
4.2m length
Trademark
Geze
Origin
China
HS Code
9032899090
Production Capacity
1000sets/Month
Product Description
The Ecdrive T2 single and double leaf automatic door system is able to move doors up to 140 kg leaf weight. It is mostly frequently installed products for interior and exterior door with high access frequency. The further development of the ECdrive was based on the premise of strengthening the areas of design, leaf weight and installation efficiency. The cover height was reduced from 120 to 100 mm to give the drive a slimmer and even more elegant design. The outstanding feature of the new ECdrive T2 capable of networking and can be flexibly integrated via the GEZE DCU103 CAN bus interface and the GEZE IO 420 interface module via BACnet™ into networking solutions such as the GEZE Cockpit. This allows for fast, easy and standardised integration into building management systems. GEZE sliding door systems can therefore be easily visualised and controlled via building management systems.Sectional View,
Geze Ecdrive T2 profile is surface model and made of high strength aluminum alloy. Modular and slim design, height 100mm, depth 190mm.ECdrive door leaf and side elements with fine-framed toughened safety glass (ESG) clamping profile
Technical Datas,
| Mode | Ecdrive T2 | |
| Door leaf | Single open | Double open |
| Clear opening width | 1000 - 3000 mm | 700 -3000 mm |
| Door weight | 140KG*1 | 120kg*2 |
| Motor | Motor gear unit | |
| Dimension | 190*100mm | |
| Open speed | 0.8m/s | |
| Close speed | 0.8m/s | |
| Door leaf adjustment vertical | 10mm | |
| Door leaf adjustment horizontal | 15mm | |
| Power supply | 220 V AC ±10% ; 50/60 Hz | |
| Power consumption | 140W | |
| Rechargable battery | NiCd,24V,700mAh | |
| Ambient temperature | -20°C to +50° | |
| Relative humidity (non-condensing) | max. 85% | |
