Cement Powder Fly Ash Tank Storage Equipment with Screw Conveyor

Product Description

weighing sensor for cement silo	load cell for cement silo

Product Description
Cement Silo

Vertical Cement silo
Traditionally, we use vertical cement silo to store dry powder material like cement, fly ash etc. It is usually equipped with
accessories like filter, level indicator, flow promotion device, safety valve to ensure it works efficiently and environment
friendly.
Currently, we can produce 20T to 2000T vertical cement silo in welding type or bolted type. Welding type cement silo is easy to install but inconvenient for transportation; While bolted type cement silo is convenient for transportation but time-consuming for installation. Welcome to contact us for details and quotations.

Vertical cement silo
Item	Welding type cement silo	Bolted type cement
Storage capacity we have	30T to 300T	30T to 2000T
Max. capacity of silo can be put into one 40HQ container	50T	2000T
Material	Carbon steel
Accessories	Silo top filter, safety valve, level indicator, flow promotion device, inside and outside ladders, butterfly valve.

Vertical cement silo--welding type

Features compared with bolted type:
1. low cost and easy to install;
2. Saving Labor work;
2. Taking up more shipping space; It can not be put into container if it is more than 50t.
Vertical cement silo--bolted type
Features compared with welding type:
1. Saving shipping space; even 2000T cement silo can be put into container;
2. More expensive and time-consuming for installation;
3. Need more labour.

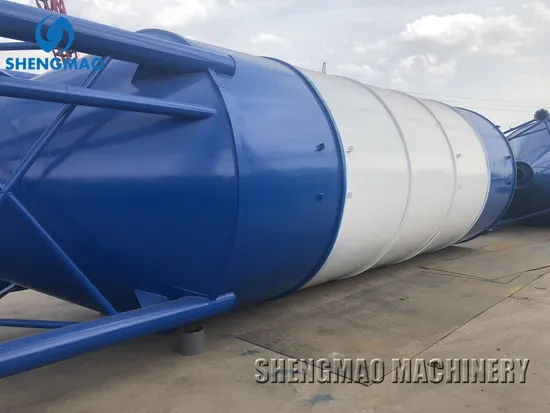

Horizontal cement silo
Horizontal cement silo is also a storage tank for dry powder material like cement, fly ash etc. It is designed to avoid the
inconvenience of vertical silo. Compared with vertical cement silo, it has the following advantages:
1. No big reinforced concrete foundation is needed, so we can save much time and cost to prepare the foundation;
2. It is much lower in height, so it is very convenient for maintenance;
3. Easy to install and move to other job sites.

Horizontal cement silo
Item	Stationary type	Mobile type
Storage capacity we have	30T to 300T
Max. capacity of silo can be put into one 40HQ container	70T
Material	Carbon steel
Accessories	Silo top filter, safety valve, level indicator, flow promotion device, inside and outside ladders, butterfly valve, vibrating motor.

Horizontal cement silo--stationary type

Features compared with vertical cement silo:
1. no need to make foundation;
2. easy to install and maintain;
3. easy to move to other job site.
Horizontal cement silo--mobile type
Features compared with vertical cement silo:
1. no need to make foundation;
2. easy to install and maintain;
3. easy to move to other job site, it is usually used to work with mobile concrete batching plant.
Spare parts of cement silo

Dust catcher	manual valve	Resistance rotary level meter
Flow promotion device	Weighing sensor	Radar sensor

Certifications


Our Projects
100T, 200T and 300T bolted type vertical cement silo for our Philippine client.
2000T bolted type vertical cement silo for our New Zealand client.
70T horizontal cement silo for our Kenya client.
Packing
