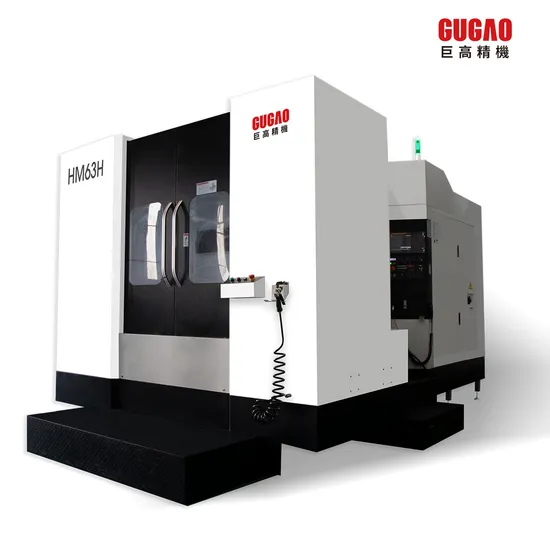

HM63H Production Description
The HM63H horizontal machining center is suitable for complex processing of box-type parts. The tool can be automatically exchanged during the processing process. It can be clamped at one time to perform milling, drilling, reaming, boring, reaming, tapping, end face processing, boring step holes and other processes on four faces. Modern machine tools and control concepts, compact structural design, ensure high efficiency and high precision processing requirements for single or small and medium batch products.
Whole machine: The main structure of the machine tool is an inverted T-shaped, dynamic column structure with good rigidity. The beautiful shape fully reflects the engineering concept of man-machine integration. It is a high-performance, high-efficiency and high-speed high-end CNC machine tool. It is easy to use, operate and maintain.
Base: The advanced finite element analysis software is used to reasonably optimize the layout of the ribs to ensure its strength and rigidity, so that the performance indicators of each component are optimized and the rigidity is durable.
Column: The double-column closed frame structure is adopted, and higher longitudinal and transverse annular ribs are set in the cavity, so that the column has higher torsional and bending rigidity.
Spindle box: The wide-range AC servo spindle motor can achieve stepless speed regulation of the spindle.
Tool magazine: The tool magazine manipulator adopts a complete set of products from professional supporting manufacturers, with reliable quality and stable performance, which further improves the working reliability of the whole machine.
Drive: Advanced large-inertia feed servo motor is selected to realize three-axis feed drive, and high-rigidity ball screw pair is adopted to fundamentally solve the processing error caused by thermal deformation and transmission clearance of the workpiece during processing, so as to achieve the purpose of time saving and high precision.
Workbench: The single-station indexing rotary table is driven by a large-inertia feed servo motor, and the position accuracy is positioned by a high-precision rat gear disk, which is high-precision, accurate and reliable.
System configuration: Equipped with a high-performance FANUC 0i-MF CNC system, it can guarantee the CNC processing functions and auxiliary functions required by users.
The quality of finished products of all machine tool parts and components is in line with the product drawings and relevant technical requirements. Its safety standards comply with the relevant provisions of GB15760-2004 "General Technical Conditions for Safety Protection of Metal Cutting Machine Tools", and its accuracy standards comply with the relevant provisions of GB/T17421-2000 "General Rules for Machine Tool Inspection" and JB/T8772-1998 "Inspection Conditions for Precision Machining Centers".
Main Paremeters

Name		Unit	Parameter	Note
Travel	Three axis travel (X/Y/Z)	mm	1050/850/900
	Distance from spindle end face to worktable Center(Z Direction)	mm	200~1100
	Distance from spindle center to worktable (Y direction)	mm	120~970
Worktable	Worktable Size(L*W)	mm	630×630
	Maximum load-bearing capacity	kg	1200
	Minimum indexing angle	mm	1°×360
	Maximum allowable rotation diameter	mm	φ1200
	T-shaped slot (quantity × width× spacing)	mm	5×18×125
Spindle	Max spindle speed	rpm	6000
	Spindle diameter Spindle bore taper		φ190/BT50
	Motor power	kW	βiIp30,15/18.5
	Spindle Torque	N.m	143/236
Feed	Three axis fast moving speed (X/Y/Z)	m/min	24/24/24
	(X/Y/Z) Three axis feed speed	m/min	10/10/10
Magazine	Magazine capacity		24T
	Max tool diameter/length/weight		φ110mm/350mm/15kg
	Maximum tool diameter (full tool/adjacent empty tool)	mm	φ110/φ200
Accuracy	(X/Y/Z) Positioning accuracy	mm	0.012
	(X/Y/Z) repositioning accuracy	mm	0.008
	Rotary table positioning accuracy	''	±5
	Repeat positioning accuracy of rotary table	''	±1.5
Others	Linear guide rail specifications (X/Y/Z)	mm	55/55/65 Roller
	Ball screw specifications (X/Y/Z)	mm	50/50/50
	Servo motor specifications (X/Y/Z)	N.m	36/36/36
	Air source/pressure		280L/min 6~8bar
	Total electrical capacity	KVA	45
	Machine size (X×Y×Z)	mm	5300×4200×3480
	Estimated weight	kg	14500
