Compliant with ISO 11898, PLC programmable logic controller supporting CANopen/ Modbus RTU/ Modbus T

Product Details

Product Description

Product Description

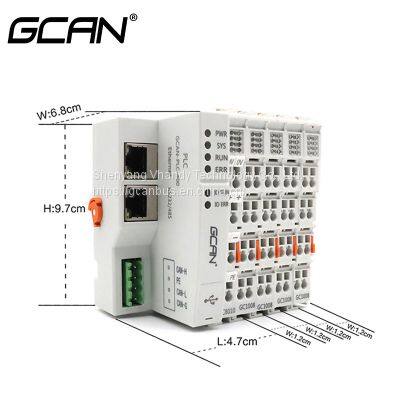

GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/…). The control module has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
Total 3 control modules

Model	Characteristic			Communication bus
	CPU frequency	Program storage	Data storage
GCAN-PLC-400	168M	16M	512K	1*CAN+1*Ethernet+1*RS232(or RS485)
GCAN-PLC-510	400M	32M	16M	1*CAN+1*Ethernet+1*RS232(or RS485)
GCNA-PLC-511	400M	32M	16M	2*CAN+1*Ethernet+1*RS232+1*RS485

3 kinds if interface
CAN, Ethernet, RS232/485, Follow ISO 11898, support CANopen/ Modbus RTU/ Modsbus TCP, can be used as master or slave station
5 programming language
Support SFC (Sequential function chart), LD (Ladder diagram), FBD (Function block), ST(Strutured text), IL (Instruction list)
After-sales service
7 x24 hours every week after sales technical support with our professional engineers to solve problems
IO freely expand
Plenty of IO modules optional including digital&analog IO modules and some other special modules. One main control module with max 32 IO modules (32*8=256 channels)
Free progrm software
Support OpenPCS software, follow IEC 61131-3, the software is free with GCAN-PLC
Without specialized downloader
GCAN-PLC can use common micro usb to complete debugging and downloading
Total 2 communication modules

Performance	CANopen adapter (GCAN-IO-8000)	Modbus adapter (GCAN-IO-8100)
Node number	1~127	1~247
Baud rate	10Kbps~1000Kbps	600bps~115200bps
Power input	24V DC (18~36V)
Insert I/O module number	32 pieces (at most 32*8 IO point)
Dimension	100mm*69mm*48mm
Working temperature, humdidness	-40℃~+85℃, 0~90%RH, without condensation
IP grade	IP20

Input and output modules

IO Module Selection Table
I/O	Type	Characteristic	Signal	Channel
Digital input	GC-1008	Digital input (PNP)	24V DC	8-channel
	GC-1018	Digital input (NPN)	24V DC	8-channel
	GC-1502	Counter(200kHz max)	–	2-channel
Digital output	GC-2008	Digital output (PNP)	24V DC	8-channel
	GC-2018	Digital output (NPN)	24V DC	8-channel
	GC-2204	Relay output	–	4-channel
	GC-2302	PWM (20Hz~200kHz)	–	2-channel
Analog input	GC-3604	Voltage input, 16 bits	-5~+5V	4-channel
	GC-3624	Voltage input, 16 bits	-10V~+10V	4-channel
	GC-3644	Current input, 16 bits	0-20mA	4-channel
	GC-3654	Current input, 16 bits	4-20mA	4-channel
	GC-3664	Voltage input, 16 bits	0~+5V	4-channel
	GC-3674	Voltage input, 16 bits	0~+10V	4-channel
	GC-3804	2-wire PT100, 16 bits	Thermal resistance	4-channel
	GC-3814	2-wire PT1000, 16 bits	Thermal resistance	4-channel
	GC-3822	3-wire PT100, 16 bits	Thermal resistance	2-channel
	GC-3832	3-wire PT1000, 16 bits	Thermal resistance	2-channel
	GC-3844	K type thermocouple	Thermocouple	4-channel
	GC-3854	S type thermocouple	Thermocouple	4-channel
	GC-3864	T type thermocouple	Thermocouple	4-channel
	GC-3874	J type thermocouple	Thermocouple	4-channel
Analog output	GC-4602	Voltage output, 16 bits	-5V~+5V	2-channel
	GC-4622	Voltage output, 16 bits	-10V~+10V	2-channel
	GC-4642	Current output, 16 bits	0-20mA	2-channel
	GC-4652	Current output, 16 bits	4-20mA	2-channel
	GC-4662	Voltage output, 16 bits	0~5V	2-channel
	GC-4672	Voltage output, 16 bits	0~10V	2-channel
	GC-4674	Voltage output, 12 bits	0~10V	4-channel
Special module	GC-6101	RS232/RS485 extension	–	–
	GC-6201	GPRS extension	–	–
	GC-6501	WiFi extension	–	–
	GC-8012	Power extension	–	–

packaging
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
