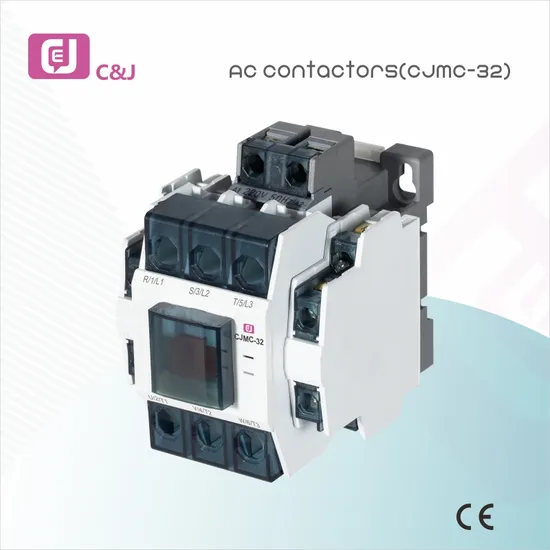

LC1-D CMC-40 AC/DC Contactor 12V 24V 48V 110V 220V 380V Coil Voltage 18A 3p 4p Magnetic Contactor
| Negotiable | 200 Pieces (MOQ) |
Basic Info.
Model NO.
CJMC-32
Phase
3
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
100A
Type
Ac Contactors
Product Name
Cjmc AC Contactor
Transport Package
Normal
Trademark
C&J
Origin
Wenzhou China
Production Capacity
50000/Month
Product Description
Product DescriptionBasic Info.
| Model NO. | CJMC Series |
| Main Circuit Rating Voltage | 380V |
| Type | AC Contactors |
| Brand | CE JIA |
| Product Name | CMC AC Contactor |
| Frequency | AC50/60Hz |
| Size | Miniature |
| Usage | Household Appliances Relay, Lathe Relay |
| Theory | Magnetic Contactor |
| Transport Package | Export Standard Carton Box or ODM |
| Specification | CE |
| Trademark | CEJIA/OEM/Neutral |
| Origin | China, Zhejiang, Wenzhou |
Application:
CJMC AC Contactor is suitable for using in the circuits up to the rated voltage 660V,AC 50Hz or 60Hz, rated current up to 85A,
for making ,breaking frequently starting&machine-interlocking device etc,it becomes the delay contactor,mechanical interlocking contactor,star-delta starter,with the thermal relay, it is combined into the electromagnetic starters. The contactor is according to IEC60947-4-1. Product Parameters
| Type | CJMC9 | CJMC12 | CJMC18 | CJMC22 | CJMC32 | CJMC40 | CJMC50 | CJMC65 | |||
| IEC60947 | 3 phase squirrel cage motor | AC3 | 200~240V | 2.5kW 11A | 3.5kW 13A | 4.5kW 18A | 5.5kW 20A | 7.5kW 32A | 11kW 40A | 15kW 50A | 18.5kW 65A |
| 380~440V | 4kW 9A | 5.5kW 12A | 7.5kW 18A | 11kW 20A | 15kW 26A | 18.5kW 35A | 22kW 48A | 30kW 65A | |||
| 500~550V | 4kW 7A | 7.5kW 12A | 7.5kW 13A | 15kW 22A | 18.5kW 28A | 22kW 32A | 30kW 43A | 33kW 60A | |||
| 690V | 4kW 5A | 7.5kW 9A | 7.5kW 9A | 15kW 18A | 18.5kW 20A | 22kW 23A | 30kW 28A | 33kW 35A | |||
| AC4 | 200~240V | 1.5kW 8A | 2.2kW 11A | 3.7kW 18A | 3.7kW 18A | 4.5kW 20A | 5.5kW 25A | 7.5kW 35A | 11kW 50A | ||
| 380~440V | 2.2kW 6A | 4kW 6A | 4kW 9A | 5.5kW 13A | 7.5kW 17A | 11kW 24A | 15kW 32A | 22kW 47A | |||
| Ith AC1 | 25A | 25A | 40A | 40A | 50A | 60A | 80A | 100A | |||
| Endurance ×10000 times | Electrical | 250 | 250 | 250 | 250 | 200 | 200 | 200 | 200 | ||
| Mechanical | 2500 | 2500 | 2500 | 2500 | 1500 | 1500 | 1000 | 1000 | |||
| Aux.Contact (Standard) | 1a1b | 1a1b | 1a1b | 1a1b | 2a2b | 2a2b | 2a2b | 2a2b | |||
| Aux.Contact (Standard) | Side-on | Screw and DIN Rail | |||||||||
| Head-on | AU 1 | AU 1 | AU 1 | AU 1 | AU 1 | AU 1 | AU 1 | AU 1 | |||
| Mounting method | AU 2,AU 4 | AU 2,AU 4 | AU 2,AU 4 | AU 2,AU 4 | AU 2,AU 4 | AU 2,AU 4 | AU 2,AU 4 | AU 2,AU 4 | |||
| Dimension(mm)(W×H×D) | 44×78×86.8 | 44×78×86.8 | 44×78×86.8 | 44×78×86.8 | 44×78×86.8 | 44×78×86.8 | 44×78×86.8 | 92×122×117.3 | |||
| Mounting Dimension(mm)(W×D) | 30~35×48~59 35×60 | 30~35×48~59 35×60 | 30~35×48~59 35×60 | 30~35×48~59 35×60 | 30~35×48~59 35×60 | 30~35×48~59 35×60 | 100×50~60 100×60 | 100×50~60 100×60 | |||
| CJMC75 | CJMC85 | CJMC100 | CJMC125 | CJMC150 | CJMC180 | CJMC220 | CJMC300 | CJMC400 |
| 22kW 75A | 25kW 80A | 30kW 100A | 37kW 125A | 45kW 150A | 55kW 180A | 75kW 220A | 90kW 300A | 125kW 400A |
| 37kW 75A | 45kW 80A | 55kW 100A | 60kW 125A | 75kW 150A | 90kW 180A | 132kW 220A | 160kW 300A | 200kW 400A |
| 37kW 64A | 45kW 75A | 55kW 85A | 60kW 90A | 90kW 140A | 110kW 180A | 132kW 200A | 160kW 250A | 225kW 350A |
| 37kW 42A | 45kW 45A | 55kW 65A | 60kW 70A | 90kW 100A | 110kW 120A | 132kW 150A | 200kW 220A | 250kW 300A |
| 13kW 55A | 15kW 65A | 19kW 80A | 22kW 93A | 30kW 125A | 37kW 150A | 45kW 180A | 55kW 220A | 75kW 300A |
| 25kW 52A | 30kW 62A | 37kW 75A | 45kW 90A | 55kW 110A | 75kW 150A | 90kW 180A | 110kW 220A | 150kW 300A |
| 110A | 135A | 160A | 160A | 210A | 230A | 275A | 350A | 450A |
| 200 | 200 | 100 | 100 | 100 | 100 | 100 | 100 | 50 |
| 1000 | 1000 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| 2a2b | 2a2b | 2a2b | 2a2b | 2a2b | 2a2b | 2a2b | 2a2b | 2a2b |
| Screw and DIN Rail | Screw only | |||||||
| AU 1 | AU 1 | AU 100 | AU 100 | AU 100 | AU 100 | AU 100 | AU 100 | AU 100 |
| AU 2,AU 4 | AU 2,AU 4 | - | - | - | - | - | - | - |
| 92×122×117.3 | 92×122×117.3 | 100×157.4×146.5 | 100×157.4×146.5 | 120×166.8×157 | 138×203×181 | 138×203×181 | 163×243×198 | 163×243×198 |
| 100×50~60 100×60 | 100×50~60 100×60 | 80×100 90×125 | 80×100 90×125 | 100×125~130 | 45×190 120×190 | 45×190 120×190 | 50×210 60×220 145×225 | 50×210 60×220 145×225 |
