Price 10t Groundnut Canola Coconut Jatropha Making Screw Cold Oil Press Machine

Product Description

Price 10t Groundnut Canola Coconut Jatropha Making Screw Cold Oil Press Machine Product Description

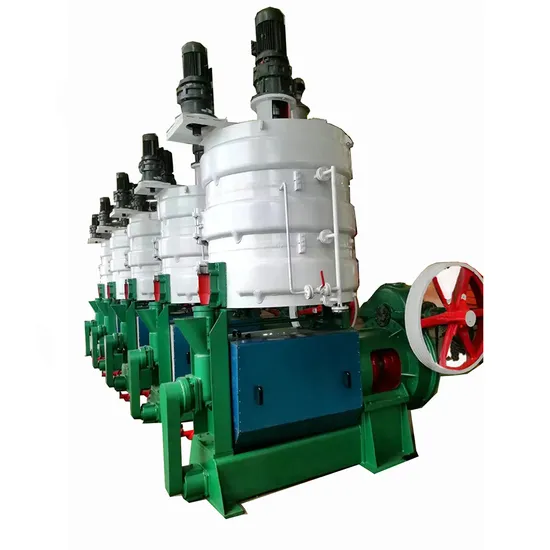

Coconut oil press machine, Best price 10T coconut oil press machine, is also called oil press machine 200A-3, is suitable for the extraction of vegetable oils from such oil-bearing materials as rapeseed, peanuts, sesame seed, cotton seed, soybeans, coconuts, plam kernel, tea seed, sunflower seed, etc.(The pressing worms can be replaced as required by the user for the purpose of the extraction of oils from some other oil-bearing materials, such as rice bran, etc.)
1, All such main parts of this machine as wormshaft, pressing worms, cage bars, gears and so forth are made of high-grade alloy steel through hardening treatment. As a result, in spite of the conditions of high temperature and abrasion under which they work day and night, they keep durable for a considerable period.
2, The combination of steaming and roasting is also one of the features of this machine. It can be regulated in accordance with the varied requirements of various oil-bearing materials for the temperatures before pressing so as to get high quality oils.
3, The whole process from feeding, steaming, roasting up to the discharge of oil and cake goes on automatically and continuously, so it is easy to operate the machine, which results in the saving of labor.
Product Parameters
1, Capacity:(The treating capacity for seeds)

Name of oil seeds	Capacity(kg/24hours)	Oil yield(%)	Residual oil in dry cake(%)
Rape seed	9000-12000	33-38	6-7
Peanut	9000-10000	38-45	5-6
Sesame	6500-7500	42-47	7-7.5
Cotton seed	9000-10000	30-33	5-6
Soybean	8000-9000	11-14	5-6
Sunflower seed	7000-8000	22-25	6-7
Rice bran	6000-7000	10-14	6-7

2, Techncial parameters:
Inside diameter of steaming cooker: Φ1220mm
Stirring shaft speed: 35rpm
Steam pressure: 5-6kg/c
Pressing bores: Front section Φ 180mm
Rear section Φ 152mm
Pressing worm speed: 8rpm
Feed shaft speed: 69rpm
Pressing time in cage: 2.5min
Seed steaming and roasting time: 90min
Max. temperature for seed steaming and roasting: 125-128ºC
Power demand: 18.5kw
Overrall dimensions(L*W*H): 2850*1850*3270mm
Weight: 5000kg Packaging & Shipping
Package: wooden case or cloth packing
Detailed Photos
More Pictures
Spareparts of Best price castor oil press machine 200A-3

Name	Qty.	Name	Qty.
1#screw	1	cake out circle	1
2#screw	1	copper bearing	1
3#screw	1	feeding blade	1
4#screw	1	opposite opening circle	1
5#screw	1	special screw nut	1
6#screw	1	fastening screw nut	1
7#screw	1	pressing plate	8
ring gasket	1	slicker	8
cake adjusting head	1	Long blade	300
case	1	short blades	100

Oil-Cake
