Versatile Food Grade IBC Tank for Liquid Transport and Storage

Product Description

Material:SUS304 /316
Surface Treatmentinside and outside:2B
Dimension:1077*1077*1205mm (can be customized)
loading weight/Volume:1000L(275gallon) optional
Superiority
1 One piece body and single seam welding

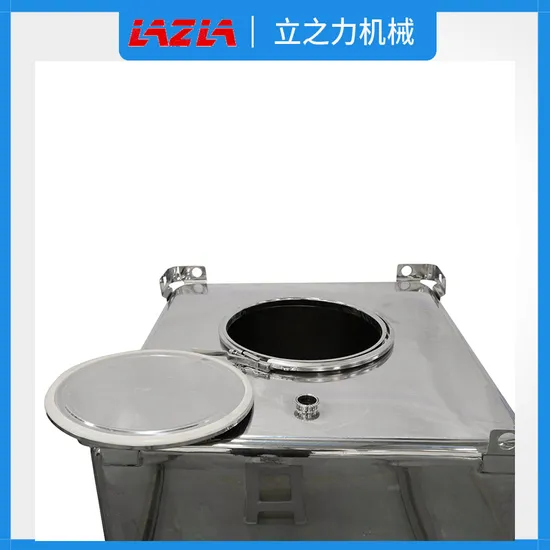

2 439mm manway on the top with EPDM gasket and bayonet lock
3 25.4mm exhaust hole on the top of tank
4 12.7mm safety valve on the top of tank
5 Heavy duty lifting lugs and stackable legs
6 2''(50.8mm) discharge with stainless steel one piece elbow,
and locking handle ball valve with plastic plug
7 full long valve guard on side drain tank
8 four-way fork lift entry on side drain tanks
9 stackable
10 Sloped bottom for virtual 100% discharge
Material:SUS304 /316 Surface Treatmentinside and outside:2B Dimension:1077*1077*1205mm (can be customized) loading weight/Volume:1000L(275gallon) optional Superiority 1 One piece body and single seam welding 2 439mm manway on the top with EPDM gasket and bayonet lock 3 25.4mm exhaust hole on the top of tank 4 12.7mm safety valve on the top of tank 5 Heavy duty lifting lugs and stackable legs 6 2''(50.8mm) discharge with stainless steel one piece elbow, and locking handle ball valve with plastic plug 7 full long valve guard on side drain tank 8 four-way fork lift entry on side drain tanks 9 stackable 10 Sloped bottom for virtual 100% discharge
IBC Tank

Name	Specification	Diamension	Weight
1 Ton IBCTank	length 1000mm,width 1000mm,height 1150mm	cuboid,thickness 2mm,	100Kg
2 Ton IBCTank	length 1300mm,width 1300mm,height 1300mm	cuboid thickness 2mm,	160Kg
3 Ton IBCTank	length 1500mm,width 1500mm,height 1500mm	cuboid thickness 2mm,	214Kg
4 Ton IBCTank	length 1600mm,width 1600mm,height 1700mm	cuboid thickness 2mm,	260Kg
5 Ton IBCTank	length 1800mm,width 1800mm,height 1800mm	cuboid thickness 2mm,	308Kg

Technical Parameter of Stainless Steel ibc Tank

Technical Parameter of Stainless Steel ibc Tank
Type:	International Standard Stainless Steel ibc Tank
Capacity:	100---2000L Can be Customized
Place of Origin:	China ,Guangdong Guangzhou
Tare Mass:	225KG
Sealing Gasket:	EPDM
Max Product Mass :	1440KG
Certification:	UN31 A/Y
Stacking Test Load:	2995KG
Manlid:	450mm,6point swing bolts assembly
Top:	2 no.DN40 socket with cap;1 no.DN50 socket with cap
Model Number:	12KC1200SS/SS/Q01
Outlet:	DN50,3 pcs ball valves,with camlock dustcap

Our Services 1. We are a direct manufacturer and our priority is your complete satisfaction. 2. Logo printing: We can print any logo as per your requires on the case. 3. We take care of each order from start to finish. All emails will be answered in 1 day 4. No matter what's your order quantity, we will offer the same attention to our quality and service 5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 7 days, depending on the quantity. 6. Packages: Available for ploy bag and carton box
Why choose us
1.more safe: It is the most convenient way for load, transporation and storage
2.more economical: It can help you to save a lot of transportation cost
3.more protecting the environment
4.more professional: It is your first choice for liquid object and small amount product transportation.
About us
Guangzhou Li&Li Mechanical Equipment Co.,Ltd.is a manufacturer with 25 employees ;it was established in 2004,located in No.3-301,Da Jian Section,South of Panyu Avenue ,Guangchong Town,Nansha District,Guangzhou ,Guangdong,China.The company occupy an area of more than 2300 square meters.Our main products include :Stainless Steel Tank,Reactor,Storage Tank,IBC Tank,Filling Machine,Conveyor Equipment,Vacuum Emulsifying Mixer ,ect.
