Three 3 Layer Co-Extrusion Rotary Die Head Biodegradable HDPE LDPE Plastic Film Blowing Extruder Machine Price

Product Description

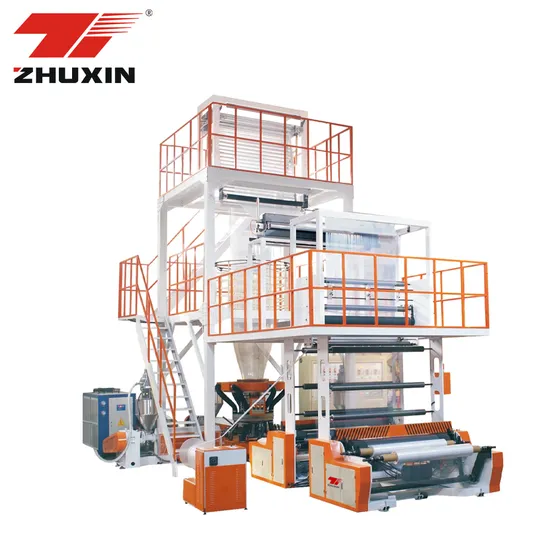

3SJ-G Series Three-layer Co-extrusion Rotary Die Head Film Blowing Machine Set
Characteristics:
1.Die head is layer type spiral mandrel, continuous 360 rotation. 2.Screen pack changer design is reliable, safe in operation and change the fitter screen easier.3.Various functional parts may be installed to the lies, such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain, anti-rost, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
Main Technical Parameters:

Model	3SJ-50	3SJ-55	3SJ-65
Suitable material	HDPE LDPE LLDPE
Film width(mm)	800-1200	1000-1500	1200-2000
Film thickness(mm)	0.028-0.20	0.028-0.20	0.03-0.20
Max.Extrusion output(kg/hr)	120	150	200
Extruder
Screw diameter(mm)	A50B50 C50	A55B60 C55	A60B65C60
Screw L/D length	28:1
Screw material	SACM-645/38CRMOALA
Cylinder material	SACM-645/38CRMOALA
Cylinder cooling	370wx2/3	370wx2/3	550wx3/3
Driving motor (kw)	15kw x 3	A18.5+B22+C18.5	A22+B30+C22
Temperature control	3X3	3X3	3X3
Average power-consume(kw)	80	95	120
Type of die
Die size	280	350	500
Temperature control	4
Air ring	1
Air blower(kw)	7.5	11	15
Center steady stick	1
Take-up unit
Roller width(mm)	165×1600	190X2100	190x2600
Take-up speed(m/min)	5-60	5-50	5-50
Take-up motor(kw)	1.5	2.2	2.2
Winding unit
Type	Surface friction type
Winding motor(N.m)	1.5kw	2.2kw	2.2kw
Winding speed(m/min)	5-50	5-50	5-50
Cover dimension(m)	9.5×4.5×7.5	10.5×5.0×9	11.5×5.5×10
