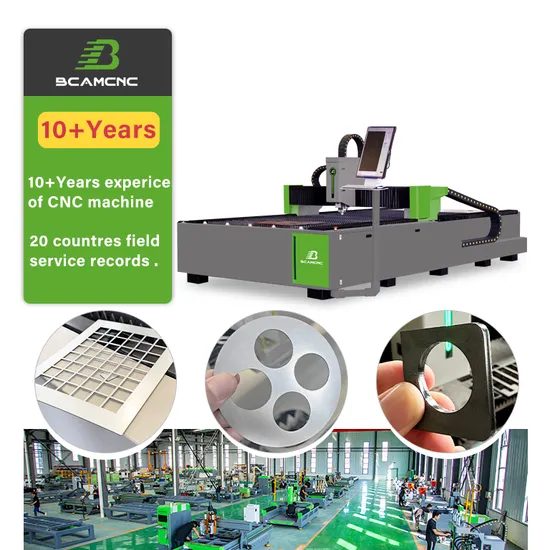

Fiber Laser Cutting Machine for Stainless Steel 4mm Stainless Steel Laser Cutting Machine

Product Description

Product Description
ADVANTAGES
1.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surfaceand no burr.
2.The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
3.Non-deformable cuttingcan be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
4.We provide customized services including logo, power, color and function customization as well as bed size.
5.We provide user manuals and installation videos, and professional technicians provide free training.
SPECIFICATION

Product Name	Fiber Laser Cutting Machine BCM F
Working Area	3015/4015/4020/6015/6020/6025/8020/8025/
Laser Power	1500w/2000w/3000w/4000w/6000w/8000w/10000w/12000W/24000W/50000W/80000W
Max Cutting Thickness	0-100mm(Depends on the power of the machine & cutting material)
Max Cutting Speed	120m/min
X,Y,Z Traveling Positioning Accuracy	±0.02/2000mm
Laser Head	Raytools
Laser Source	Max/Raycus/IPG
Power System	Taiwan Delta motor and drivers+Japan Shimpo reducer
Location System	Red dot indicator
Delivery Time	7 - 10 working days after payment
Application Material	stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy,copper, brass, iron .

Machine Details
MACHINE DETAILS
FIBER LEASE HEAD
The laser head body is increased anti-collision function and can be adapted with a variety of fiber laser.
HIGH LIGHT AND RIGIDITY
Aerospace grade aluminum light qualit, high speed.Beam as a whole by the finite element analysis optimization of high rigidity.
HIGH STABILITY BED
To optimize the design of the sectional welding lathe bed.Lathe bed in the middle of reinforcing bar, improves the lathe bed stability.
THE MOTOR AND REDUCER
Machine adopt Taiwan Delta servo motor and Japan Shimpo reducer.
TAIWAN TBI LINEAR GUIDE RAIL
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide reduce wear to maintain accuracy for a longer time.
LONG LIFE LASER SOURCE
Fiber laser generator with great and stable performance to have lifespanover 100,000 hours.
CUTTING PARAMETERS RECOMMEND PRODUCTS

Samples Display
SAMPLES DISPLAY
Certifications
CERTIFICATIONS
Customer Reviews
CUSTOMER REVIEWS
Company Profile
ABOUT BCAMCNC
FAQ
FAQ
Q: I don't know which one is suitable for me ?
A: Just tell me this information and our professional sales colleagues will recommend the right machine for you
1. What type of metal do you want to cut? (e.g., Sheet, tube, or both)2. What kinds of metal materials are you interested in? (e.g., Carbon steel, Stainless steel, Aluminium)3. What is the maximum cutting thickness and size? (e.g., Thickness: ___, Size: ___)
Q: Are you a factory or a trade company?
A: We are a factory with rich experience. Our factory is in Shandong, China. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers to watch
Q:What about after-sales problems?
A: If your macine such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.
Q:How to install and run the machine?
A: Our technicians have installed the machine before shipment. For the installation of some small parts, we will send detailed training videos and user manuals with the device. 95% of customers can learn by themselves.
If you have other questions, Please send inquiry. We will reply to you as soon as possible.
