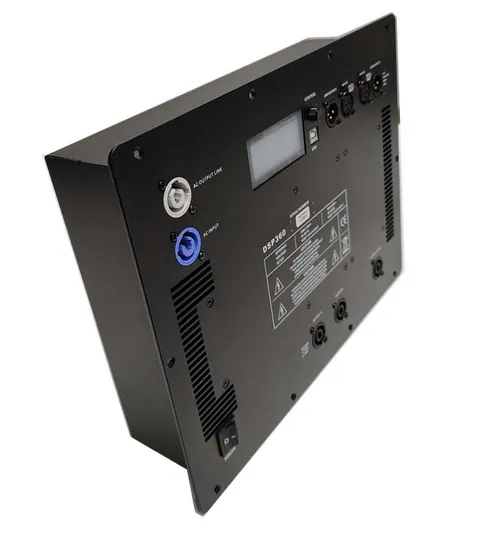

D360 3CH Class D Active Transistor Amplifier Plate Module with DSP for Professional Speaker

Product Description

Welcome to ACLON audio factory. We are your one stop source for all of your Sound, Staging and Production needs. Whether you are looking to wholesale purchase or are looking for full concert production services, ACLON is here for you!
*** Line array system
***Power Amplifier
***PA speaker unit
***Microphone system
***Accessory
OEM / ODM is welcome!
ACLON DSP series is designed to match pro audio system self powered.
its flexible output power is available for different cabinet: 2 ways active speakers,3 ways line arrays, subwoofer, column box etc.
ACLON---DSP360 Digital amplifier module specification
DSP360 amplifier module adopting the power supply dynamic controlling circuit and amplifier adaptive impedance controlling circuit, and combining the German DSP technology, which makes the module with high power, high efficiency, and clear and smooth sound.
1) Application: 2 inputs, 2 audio parallel outputs, DSP stereo module, applied to 2.1 system or three-way speaker. 2). Program control: Built-in DSP, on the PC software, 1-A, 2-B & 3-C channels are available, 4-D is unused. 3). Port: USB

Model	DSP360
Output Power(8Ω)	2X600W +1200W
Output Power(4Ω)	2X960W +1920W
Output Circuit LF	Class D
Input impedance	10kΩ balanced
Frequency response	20Hz-20kHz.(+/- 0.5dB) @1W,8Ω
THD+N	< 0.09% from 0.1W to half power
SLEW RATE	50V/μs@8Ω, input filter bypassed
S/N RATE	>115dB(20Hz-20kHz, A weighted)
DAMPING FACTOR	>500@100Hz
Input sensitivity	1.2V/+4dBu
GAIN	35dB
PROTECTION	DC, short circuit, over load, clip limit, over heat,
POWER SUPPLY	AC 110V, 220V-240V±10%,50-60Hz
DIMENSION (mm)	360*280*85 mm
N.WKG)	6.6 kg

TERMS AND CONDITIONS:
Lead time: 5 days for sample;15 days for FCL order
Payment term: TT ; Western Union;Cash
Payment term: FOB; EXW; CIF
MOQ:1pcs.
Good discount:: Order above 100pcs, price will be more favorable.
Our advantages
1. Imported USA component, USA technology.
2. Fast production lead time;
3. High quality and competitive price;
4. Professional factory. Workers are working with rich experience and good workmanship.
5. Product sound and performance it can compare with international famous brand.
FAQ
1. Q: Are you a factory or trading company?
A:We are a factory, specialized in professional audio equipment.
2. Q: Where is your factory located? How can I visit there?
A:Factory located in Haizhu Town , Guangzhou City, Guangdong Province in China. Takes about 1 hour from airport to our factory.
3. Q: How does your factory do regarding quality control?
A:Quality is priority. Each production process must be checked by QC team and QA before departure.
4. Q: Can you accept customized orders? OEM or ODM orders?
A: Yes, we can. Customized orders are always welcomed, as well as OEM and ODM.
5. Q:Can you make customers' logo on products and customer design?
A:Yes, we can, and customer's design are welcome .
6. Q:.Which country is your main export market?
A: Our main export regions are USA, Canada, Guatemala, Mexico, Germany, UK, Sweden, Hungary, Vietnam, Indonesia, Malaysia, Kenya, Ghana etc.
7. Q:.What if I can't find the infos I'm looking for, or what if I want to speak to someone directly?
A: Send message now, feedback will be got promptly or latest within 12 hours.
