PE / HDPE / LDPE / PP Drum and Bottle Extrusion Blow Molding Machine

Product Description

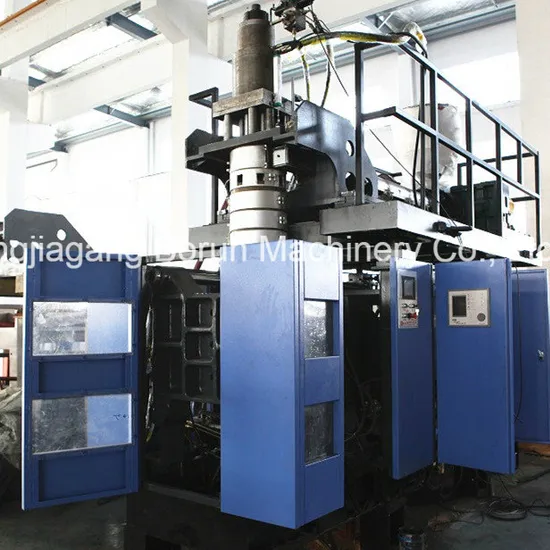

PE / HDPE / LDPE / PP Drum And Bottle Extrusion Blow Molding Machine

This model adopts fixed mould open-closing system and accumulator die.This model is automatic process with low noise, saving energy, high efficiency, safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts(water box, oil box, air-condition pipe, aoto tail), toys (wheel, hollow autobike, basketball stands, baby castle), tool box, vacuum cleaner pipe, chairs for bus and gymnasium,etc.This model can produce max 10L hollow plastic product.

Characteristic:
1.Control Unit: Japan Mitsubishi PLC programmable controller and Taiwan HITECH touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.
2.Hydraulic Unit: It adopts international famous Japan YUKEN brand hydraulic valve and seal, proportional control. And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on.
3.Extrusion Unit: Hard gear surface decelerator; famous HFinverter inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating
4.Die Head Unit: With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel.
5.Clamping Unit: Adopts fixed mould open-closing system,fast and balanced.
6..Blow Fitting Unit: Down blowing fitting is equipped.
7. Lifter Unit: Four turbine reducer liter, lifting balance, quick, stable.
8. Electrical Components: All of the electrical components are made in Japan and Taiwan.

Model	Unit	BM-50S	BM-60S	BM-80S	BM-60D	BM-70D
Max. Product volume	L	2.5	6	25	2	6
Dry clcle	Pcs/h	1500	1200	600	700x2	600x2
Screw diameter	Mm	50	60	80	60	70
Screw L/D ratio	L/D	24-30	24-30	25-30	24-30	24-30
Screw drive power	KW	11-15	15-18.5	37-45	15-18.5	18.5-30
Screw heating capacity	KW	7.8-8.5	10.8-12	16-20	10.8-12	12-14.5
Output of HDPE	Kg/h	30-35	60-68	120-140	60-68	70-85
Oil pump drive power	KW	5.5	5.5	22	5.5	5.5-7.5
Clamping force	KN	35	68	200	35	68
Platen distance	mm	138-368	178-538	400-900	138-368	178-538
Capacity	L			4.8
Max. Die diameter	Mm	90	150	300	90	150
Central distance of bi-die	Mm	110-130	130-200		130-150	150-200
Max. Die diameter (Bi-die)	mm	55	100		80	100
Central distance of three-die	Mm	80-110	100-120		80-110	110-140
Max. Die diameter(three-die)	Mm	40	60		40	70
Central distance of four-die	Mm	60-85	60-85		60-85	70-100
Max. Die diameter (four-die)	Mm	25	30		25	45
Die heat capacity	KW			16
The average consumption	KW/H	12.5	16.5	32	16.5	18.5
Blowing pressure	MPa	0.6	0.6	0.8	0.6	0.6
Air volume	M³/min	0.4	0.5	0.8	0.4	0.4
Cooling water pressure	MPa	0.2-0.3	0.2-0.3	0.3	0.3	0.3
Water consumption	L/MIN	30	50	80	60	70
Dimension	L*W*H	2.8*1.8*2.3m	3.0*1.9*2.5m	4.3*2.2*3.6m	3.0*2.15*2.6m	3.5*2.1*2.6m
Weight	Ton	3	4.5	12.5	6.5	7.8

hydraulic parts

COMPONENT	SUPPLIERS
OIL PUMP	TAIWAN HITECH
HYDRAULIC VALVE	TAIWAN NORTHMAN

electronic parts

COMPONENT	SUPPLIERS
MICROCOMPUTER CONTROL SYSTEM	JAPAN MITSUBISHI PLC
TOUCH SCREEN	TAIWAN HITECH TOUCH SCREEN (COLORFUL, BILINGUAL)
TEMPERATURE MODULE	TAIWAN 7118R
PROXIMITY SWITCH	TAIWAN RIKO
CONTACTOR	FRANCE SCHNEIDER
MOTOR	SIEMENS BEIDE THREE PHASE MOTOR
POWER RESOURCE	TAIWAN MEAN WELL
TANSDUCER	TAIWAN DELTA

air control system

COMPONENT	SUPPLIERS
AIR VALVE	TAIWAN AIRTAC
