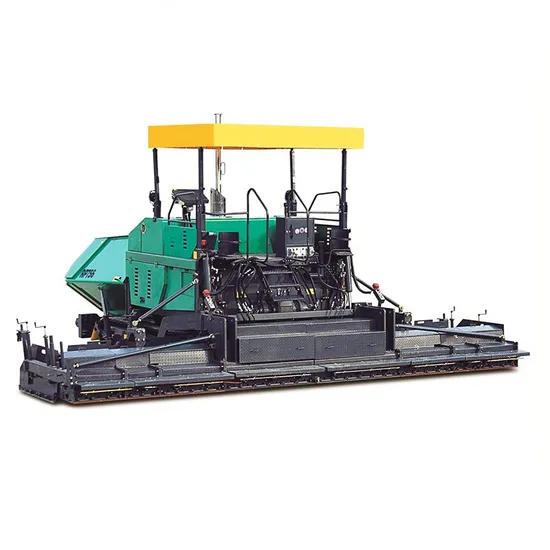

6m Paving Width Top Brand RP603 Asphalt Concrete Paver with 14 Ton Hopper Capacity
| US$115,000.00-135,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RP603
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
700t/H
Feeding Height
1400mm
Vibrating Amplitude
2.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Max Paving Thickness
320mm
Paving Speed
0~18m/Min
Hopper Capacity
14 Ton
Gradient Ability
20%
Transport Package
Standard Shipment
Specification
7150*3000*3950 mm
Trademark
Newindu
Origin
Jiangsu, China
HS Code
8429521200
Production Capacity
500/Month
Product Description
6m paving width top brand RP603 asphalt concrete paver with 14 ton hopper capacityProduct DescriptionReliable drive system
Efficient feed/ material distribution system
Efficient control system
Strong power system
Advanced screed technology
Parameter
| ltem | Unit | RP603 |
| Basic Pave Width | m | 2.5~4.75 |
| Maximum Pave Width | m | 6 |
| Maximum Layer Thickness | mm | 350 |
| Maximum Paving Speed | m/min | 20 |
| Maximum Travel Speed | km/h | 3 |
| Hopper Capacity | t | 14 |
| Maximum Laydown Rate | t/h | 400 |
| Engine and Type | - | QSB6.7-C170 |
| Rated Power | kW/rpm | 129/2200 |
| Shipping Dimension (LxWxH) | mm | 6680*2500*3180 |
| Shipping Weight | t | 18.5 |
| Full Dimension (LxWxH) | mm | 6680*2500*4000 |
| Full Weight | t | 19 |
