5-19mm PP Tape High Speed Automatic Winding Machine for PLC Control System

Product Description

https://membercenter.made-in-china.com/productmanage.do?xcase=view&prodId=jACRkTaUHvhH&queryGroupId=&queryCatCode=&pageSize=30&queryState=-1&prodUpgradeActivity=
Product Description

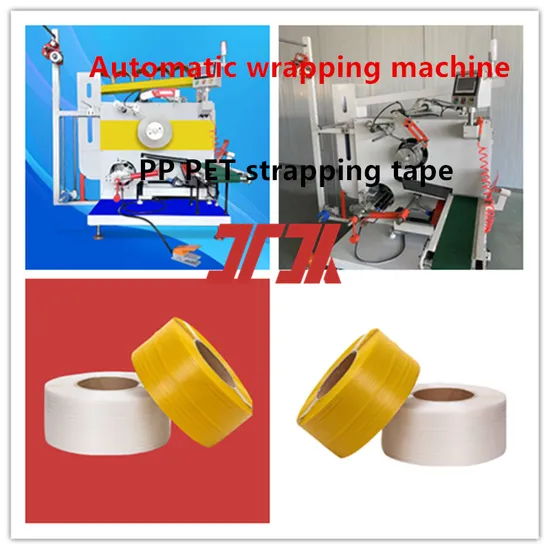

Automatic PLC controlled single station PET/PP tape winder, this PP PET winder is suitable for tapes with extrusion speeds up to 200-300 m/min. Each machine is equipped with a reel. The machine is equipped with a reinforced tension arm to control the winding tension. The inclinometer fixed on the reinforced tension arm converts the physical position signal of the tension arm into an electrical signal and sends it to the programmable logic controller (PLC).
After data processing, the PLC controls the running speed of the winding motor and drives the paper tube fixed on the winding shaft to evenly wind the tape with constant tension.
PARAMETER TABLE

Name	Automatic Winding Machine
Tape width	5-19mm
Thickness	0.3-1.2mm
Control mode	servo motor
Pressure	4-7kgf
PLC control	YES
Paper tube	Ø200*150/190mm
Max weight	20-350kg/roll
power single-phase	220V
Weight	700KG
Overall dimension	(L)1400mm*(W)1200mm*(H) 1850mm

Features :1.Product Name: PP Strapping Band Winding Machine
2.Servo motor: YES
3.Speed: 120-300m/min
4.Auto wrap PE film: YES
5.Adjustable tightness: YES
6.Machine size: L1200*W1200*H1800mm
7.Servo Motor Control:YES
7.Keywords: Automatic winding machine, PET strap full-automatic winder, PP strap full-automatic winder


Features of automatic wrapping machine:
Strong adaptability---can handle PP PET tapes of different widths and thicknesses, adapt to a variety of production needs, with or without paper cores.
Energy-saving and environmental protection---adopt energy-saving technology to reduce energy consumption, low power consumption, fast speed, in line with environmental protection requirements.
Safe and reliable---equipped with multiple safety protection devices, automatic power-off protection, to ensure safe operation.
Easy maintenance---PLC modular design, simple maintenance and maintenance, reducing downtime.
Excellent appearance design---compact structure, beautiful appearance, in line with modern factory requirements.
