High Quality Universal Travel Power Supplies Solar Chargers
| US$1.50-5.90 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
YS6
Quick Charging Function
Without Quick Charging Function
Over-Current Protection
With Over-Current Protection
Display
Without Display
Color
Black
Socket Type
For E.U.
Customized
Customized
Brand
Yingjiao/OEM/ODM
Certification
GS/Ce/EMC/RoHS/Reach
Packaging
PE Bag, White Box, Carton
Protection
Hipot, Short Circuit, Overvoltage, Ove
Experience
20 Years′experience
Quick Delievery
15-25 Days
Transport Package
PE Bag, White Box, Carton
Specification
UL/CUL/TUV/GS/CE/CCC
Trademark
Yingjiao&OEM
Origin
Ningbo, China
HS Code
8504401400
Production Capacity
1, 000 PCS/Day
Product Description

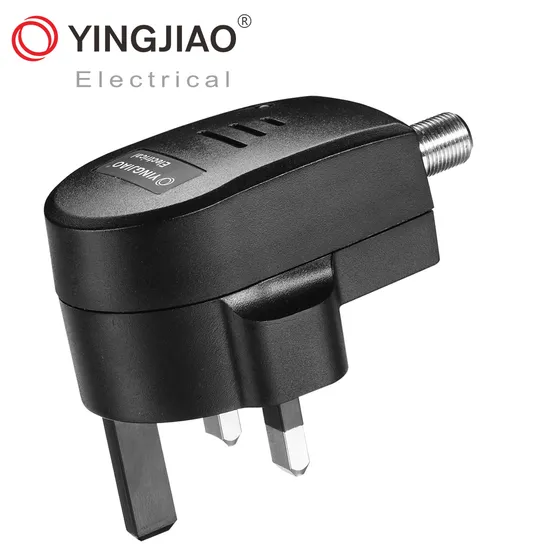

We are a professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, etc.Model: YS6 series
Universal Input: 100-240V AC 50/60Hz
Rated Power: 6W max.
Features:
Safety: TUV/GS/CE/UL/CUL
EMI: CLSPR 22 / FCC /VCCI CLASS B
High efficiency & low power consumption
RoHS compliant
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
Mechanical:
Dimensions: 59mm (L)*39mm (W) *25mm (H)
N. W.: 65g
AC Plug: European two round pins or American two flat pins
Output plug: Optional
Data:
| Battery charger | NI-MH battery charger |
| Model: | YS6B |
| Rated Power: | 6W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 3V / 4.5V /6V /9V /12V /13.5V/ 15V /16.5V /18V |
| Output Current: | 0.1-0.5A Constant Current |
| Input current: | 0.2A max. |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 0.25mA Max. at 264VAC input |
| No Load Power Consumption : | <0.3W |
| Protections: | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | ≤Iout*150% |
| Working TEMP.: | '-20-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | ,-40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input plug | EU,UK,US,AU plug option |
| Certificates and approvals: | CE,EMC,RoHS,REACH |
| LVD | EN 60335-1 /EN60335-2-29 |
| EMI EMISSION: | EN55014-1/EN55014-2 EN61000-3-2 EN61000-3-3 |
| MTBF: | 100000 hours minimum at full load at 25 C ambient |
| Dimension: | 59*39*36.5mm |
| Weight: | 65g |
| Packing: | 100PCS/CTN, 40.5*26*30cm |
Details:
| Model: | YS6-0300800 | YS6-0450500 | YS6-0601000 | YS6-0900500 | YS6-1200500 |
| DC Voltage: | 3V | 4.5V | 6V | 9V | 12V |
| Rated Current: | 800mA | 500mA | 1000mA | 500mA | 500mA |
| Current Range: | 100-800mA | 100-500mA | 100-1000mA | 100-500mA | 100-500mA |
| Rated Power: | 2.4W | 2.25W | 6W | 4.5W | 6W |
| Voltage Range: | ±5% | ||||
| Line Regulation: | ±3% | ||||
| LED indicator | Red is charging ,Green is idle and full charged. There will be a continous float charging current 150mA after full charged . | ||||
| Setup,Rise,Hold up time: | 1000ms,50ms,16ms at full load | ||||
