Hy-660 Automatic High Speed Plastic Cup Forming Machine

Product Description

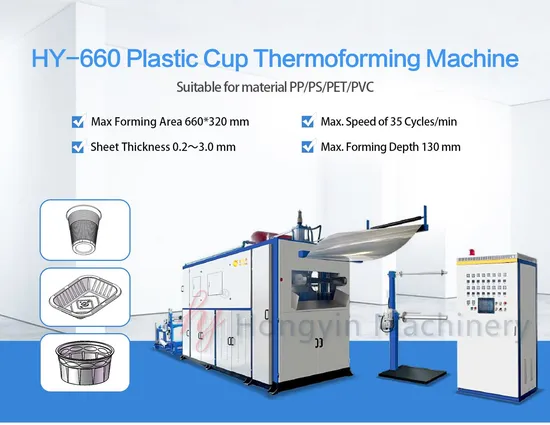

HY-660 Automatic high speed Plastic Cup Forming Machine
HY-660 type plastic air pressure molding machine (the cup and bowl machine)
HY-660 thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by micro PLC. It operates with man-interface, which can work all by itself. It combines the material feeding, heating, drawing, forming, cutting and transporting into one process.
Plastic air pressure molding machine is mainly used for production, production of disposable tableware, cold drink cup, yogurt cup, jelly cup, ice cream cup, snack box, plastic bowl, milk tea cover, etc. At the same time also can processing medicine, light industry, textile, tourism, toys, and other relevant plastic packaging products.

Main Technical Parameter
Power Supply	380V/3P/50HZ
Material	PP/PS/PET/PLA/PVC
Driving Method	Hydraulic drive
Forming Area	660×320mm
Sheet Thickness	0.25~3.0mm
Max forming depth	<=130mm
Forming Speed	15-35cycles/min
Air Pressure	0.6~0.8Mpa
Air Consumption	2200L/min
Machine Dimension	3700×1500×2500mm
Total power	140kw
Weight	6500Kgs

About Ruian Hongyin Machinery Co., Ltd Service.
1. Pre-sales Service
Hongyin MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area, we are glad to give you specialized suggestion of the whole work.
2. Shipping Service
Hongyin MACHINERY has a specialized and independent department to arrange the shipment. We will prepare all the necessary documents so as to arrange the delivery smoothly.
We cooperate with the most famous shipping company in China, they could provide the best and economic shipping ways to the destination.
3. Installation Services
Installation Services are available with all Hongyin Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets, food, hotel cost and daily salary.
4. Clients Training Services
The buyer could also send your own technician come to Hongyin factory to learn how to operate machines. Our technician will teach and train the learners hand by hand till he can operate machine by himself.
5. After Sales Service
Hongyin Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
If you are interested in our machine, please feel free and contact me.
Ms Irena
