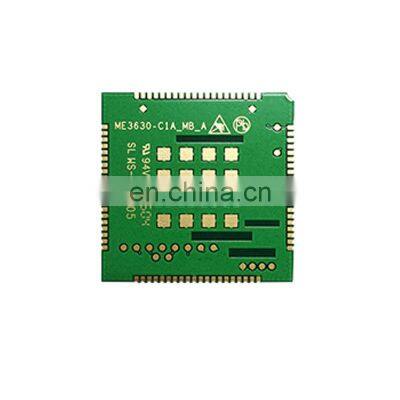

ZTE LTE 4G Module ME3630

Product Description

Product Description
Description ZTE LTE 4G Module ME3630ME3630LTEME3630 is designed as LCC form factor module which supports LTE cat.4 version, 6-mode RF band for global market. ME3630 can be widely used in M2M industries such as smart meter, Security and monitor, Industrial router, DTU, CPE, Telematics etc..* 7-mode supported including LTE TDD/LTE FDD/WCDMA/TD-SCDMA/EV-DO/CDMA/GSM, the downlink speed is up to 150Mbps* Chinese, European and US version* Support GNSS* LCC 30*30 Form factor, compatible with vlink family products* VoLTE* FoTA* Control Via AT Commands according to 3GPP TS27.005, 27.007 and ZTEWelink extended AT commands* Drivers for WIN XP/7/8, Android, Linux, WinCE OS* Support embedded TCP/UDP protocols, PAP and CHAP protocols used for PPP connection OverviewME3630 is a LTE module in LCC form factor. It supports LTE TDD/LTE FDD/WCDMA/TD-SCDMA/CDMA/GSM with worldwide coverage. It delivers 50Mbps(UL) and 150Mbps(DL) data rates on LTE FDD networks and can be fully backward compatible with existing WCDMA and GSM networks.A rich set of internet protocols (PAP and CHAP used for PPP connections)and abundant functions (GPS/A-GPS, DTMF, TTS, Remote wakeup, MMS, SMS) extend the applicability of the module to a wide range of M2M applications.ME3630 also allows the integration of automotive and other applications requiring assured extended operating temperature range and mechanical ruggedness within the ever-shrinking space inside electronic bays in trucks, automobiles, and other mobile platforms.C1A: LTE FDD: B1, B3LTE TDD: B38, B39, B40, B41UMTS: B1TD-SCDMA: B34, B39CDMA EVDO: BC0CDMA 1x: BC0GSM: B3, B8E1A:LTE FDD: B1, B3,B7,B8,B20UMTS: B1,B8GSM: B3, B8U1A:LTE FDD:B2,B4,B5,B13,B17UMTS:B2,B5Highlights* LTE Cat.4 version, the downlink speed is up to 150Mbps, for faster experience and smaller latency* LTE 7-mode for global market* LCC 30*30 form factor* Ultra package and slim design for multiple application * The work temperature range can reach form -40 to 85℃* USB Selective Suspend & Remote wakeup* USB2.0 high mode and UART interface* Rx diversity* GNSS* VoLTE* FoTACertificationCCCCMIITCTARoHS (Planning)FCC PTCRB (Planning)CE (Planning)Operator:AT&T T-mobile (Planning) Hint: ME3630 Mini PCIE Version is available FeaturesNetworkFDD-LTE/TDD-LTE/UMTS/TD-SCDMA/CDMA2000 1X/EV-DO Rev.A/GSMFrequency bandC1A:LTE FDD: B1, B3 LTE TDD: B38, B39, B40, B41 UMTS: B1 TD-SCDMA: B34, B39 CDMA EVDO: BC0 CDMA 1x: BC0 GSM: B3, B8E1A:LTE FDD: B1, B3,B7,B8,B20 UMTS: B1,B8 GSM: B3, B8U1A:LTE FDD:B2,B4,B5,B13,B17 UMTS:B2,B5Dimensions30×30×2.1 mmTemperature-40℃ to +85℃Voltage-40℃ to +85℃Voltage Range:3.4V~4.2VTypical Value:3.8VConsumptionAbout 3mA standby currentInterfaceLCC 80PinUSB interfaceUSB 2.0DriverWindows XP/7/8Android 2.3/4.X/5.XLinux 2.6.10 and laterWinCE 5.0/6.0Data rate(FDD)DL: 150Mbps/UL: 50Mbps(TDD)DL: 112Mbps/UL: 30MbpsFunctionData/SMS/GNSS/FOTA(developing)CommandsStandard AT commands/ZTE exclusive commandsCertificationsCCC/CMIIT/CTARoHS (Planning)/FCC /PTCRB (Planning)/CE (Planning)/Operator:AT&T T-mobile(Planning)HighlightsSupport GNSS, VoLTE and FoTASupport 7 bands for global marketSupport LTE Cat.4Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
