Great Quality New-Style Household Product Machine Made of Bathtub
| US$10,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM1100
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, SGS, TUV
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
According to Countries
Showroom Locate
Malaysia,Indonesia,Turkey,Mexico,Uzberkista,Mn
Condition
100% New
Machine Weight
56 Ton
Transport Package
Standard Packing
Specification
12.18*2.65*3.5
Trademark
HIGHSUN
Origin
China
HS Code
847710
Production Capacity
7000sets/Year
Packaging & Delivery
Package Size
1218.00cm * 265.00cm * 350.00cm
Package Gross Weight
56000.000kg
Product Description

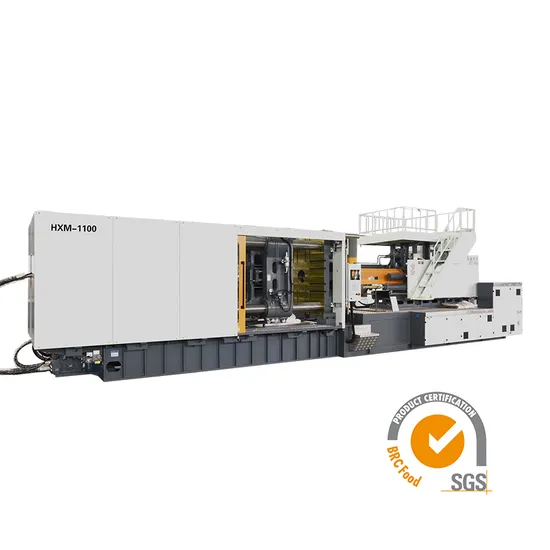

| MODEL: HXM1100 | |||||
| TECHNICAL PARAMETER TABLE | A | B | C | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 110 | 120 | 130 |
| SCREW L/D RATIO | L/D | 22 | 21 | 19 | |
| INJECTION CAPACITY IN THEORY | cm3 | 5321 | 6333 | 7433 | |
| INJECTION WEIGHT(PS) | g | 4842 | 5763 | 6764 | |
| oz | 170.7 | 203.2 | 238.5 | ||
| INJECTION PRESSURE | MPa | 194 | 163 | 139 | |
| INJECTION RATE | g/s | 858 | 1021 | 1198 | |
| PLASTICIZING CAPACITY | g/s | 101 | 112 | 125 | |
| SCREW SPEED | rpm | 110 | |||
| CLAMPING UNIT | CLAMPING FORCE | KN | 11000 | ||
| MOVING MOULD-PLATE STROKE | mm | 1220 | |||
| MAX. MOULD HEIGHT | mm | 1170 | |||
| MIN. MOULD HEIGHT | mm | 450 | |||
| SPACE BWTWEEN TIE-BARS (W*H) | mm | 1160*1160 | |||
| HYDRAULIC EJECTOR FORCE | KN | 260 | |||
| HYDRAULIC EJECTOR STROKE | mm | 320 | |||
| EJECTOR NUMBER | n | 21 | |||
| OTHERS | PUMP PRESSURE | MPa | 17.5 | ||
| MOTOR POWER | KW | 38+38+38 | |||
| HEATING CAPACITY | KW | 68.85 | |||
| MACHINE DIMENSION (L*W*H) | m | 12.18*2.65*3.50 | |||
| MACHINE WEIGHT | t | 56 | |||
| OIL TANK CAPACITY | L | 1390 | |||
