BZ1650S 5 Pile Automatic Litho Corrugated Carton Paperboard Cardboard Flip flop turner and Stacker machine

Product Description

Product Description

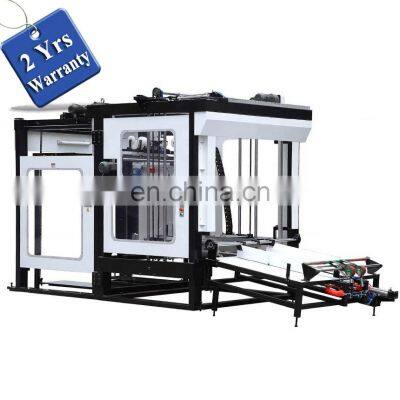

BZ1650S 5 Pile Automatic Litho Corrugated Carton Paperboard Cardboard Flip flop turner and Stacker machine
Videos
Video demonstration only for reference
Video: /watch?v=P7YKankXU_Y
Product Description
Description:
Automatic flip flop and stacking machine is the special accessory equipment for sheet to sheet laminating machines and can be connected with any of flute laminator. This integrative machine can pile up the laminated papers automatically according to preset number. By collecting, piling, flip flop turning and stacking functions, the machine realizes the collected paper front and backside placed stacking, effectively avoid laminated paper of curving and save a lot of men power.
Functions:
1, Auto Collecting
2, Front and Back Placed Stacking
3, Collecting Orderly
4, One Key Operation
5, Fault Detection
6, Easy Connecting
7, Space Saving
8, Simple and easy to learn
9,Save time and effort
Parameters:
Voltage: 380V, 50HZ, 6KW, 3 Phase
Max. Sheet size BZ1450S: 1450*1250mm
Max. Sheet size BZ1650S: 1650*1450mm
Min. Sheet size: 500*500mm
Dimension BZ1450S: 5500*2600*3050mm
Dimension BZ1650S: 5500*2800*3050mm
Detailed Images
Down Push System
Driven by the cylinder two pawl forward movement, push the set up quantity paper into a turnover device
Turning System
Using the automatic clamping system to make paper front and back alternately placed, make sure the laminated paper smooth and stiff, convenient for subsequent production line.
Up Push System
Using cylinder and lever principle, pushing the lifting paper into collecting system and waiting to be piled
Piling System
Reciprocating motion of four splint patting the collected paper orderly, ensure the collecting neat
Paper Seperating System
Driving wheel and laminating press belt joint to transmit power. Laminated paper be stacked down to down pallet by driving wheel and synchronous belt, when reach the specified number, separating rod lift and separate the paper.
Collecting System
When the paper stacking to 1.7M in height, collecting platen automatic drop, hydraulic car will pull out the whole stack of paper, at the same time the vice paper collecting table automatic work, complete non-stop collecting finished
Pneumatic Control System
The mechanical action work through pneumatic control to complete, all pneumatic components are imported famous brand.
Electrical Cabinet
All parts adopt well-known foreign brand, reasonable program design, working by one key to complete the operation, automatic fault detection
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
