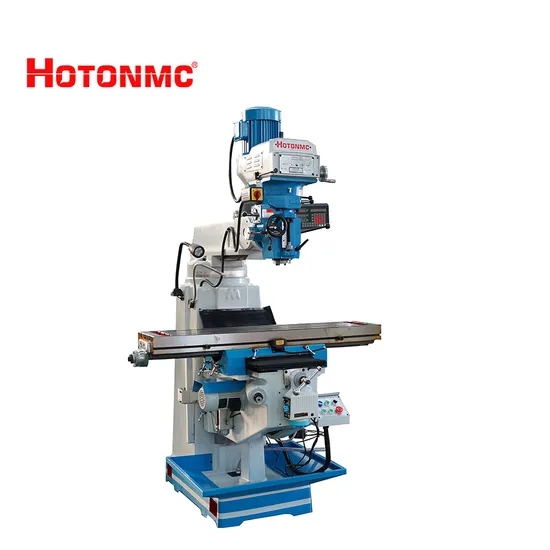

4H Infinite Variable Speed Universal Vertical Turret Milling Machine X6325D
| US$3,000.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325D
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Size
254X1270mm
Long Travel(mm)
800mm
Cross Travel(mm)
420mm
Vertical Travel(mm)
420mm
Motor
3.75kw
Spindle hole taper
ISO40
Transport Package
Plywood Case
Specification
1600kgs
Trademark
HOTON
Origin
China
HS Code
8459590000
Production Capacity
10 PCS/Month
Product Description
TURRET MILLING MACHINE FEATURES:
Feature of X6323
The guide way on saddle is lined with TF wearable material
The worktable surface and 3 axis guide way are hardened and precision ground
SPECIFICATIONS:
| MODEL | X6325D |
| Features | Swallowtail guide way on X/Z-axis Rectangular guide way on Y axis |
| Table size | 1270x254mm |
| Table loading | 350kg |
| Long travel | 800mm |
| Cross travel | 420mm |
| Vertical travel | 420mm |
| T-slot No. and size | 3×16 |
| Ram travel | 500mm |
| Distance from spindle nose to table surface | 0-405mm |
| Spindle hole taper | ISO40 |
| Sleeve Diameter | 85mm |
| Spindle travel | 130mm |
| Spindle speed | (standard): (shift grade) 50HZ: 66-4540 60HZ: 80-5440 |
| Auto. quill feed | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution |
| motor | 3.75KW/5HP(380V) 2.2KW/3HP(220V) Milling Head from Taiwan |
| Head swivel | 90° |
| Head tilting | 45° |
| Dimension of machine | 1516x1550x2160 |
| G.W/set | 1400kg |
| MODEL | X6330 | X6330D |
| Features | Rectangular guide way on Y/Z-axis | |
| Table size | 305×1370 | 305×1370 |
| Table loading | 350Kg | 350Kg |
| Long travel | 800mm | 850mm |
| Cross travel | 420mm | 420mm |
| Vertical travel | 420mm | 420mm |
| T-slot No. and size | 3×16 | 3×16 |
| Ram travel | 500mm | 500mm |
| Distance from spindle nose to table surface | 0-405mm | 0-405mm |
| Spindle hole taper | ISO40 | ISO40 |
| Sleeve Diameter | 85mm | 85mm |
| Spindle travel | 127mm | 127mm |
| Spindle speed | (standard): (shift grade) 50HZ: 66-4540 60HZ: 80-5440 | (standard): (shift grade) 50HZ: 66-4540 60HZ: 80-5440 |
| Auto. quill feed | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution |
| Spindle motor | 3.75KW/5HP(380V) 2.2KW/3HP(220V) Milling Head from Taiwan | 3.75KW/5HP(380V) 2.2KW/3HP(220V) Milling Head from Taiwan |
| Head swivel | 90° | 90° |
| Head tilting | 45° | 45° |
| Dimension of machine | 1516×1550×2250 | 1516×1550×2500 |
| G.W/set | 1450Kg | 1500Kg |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
