Various Kinds of Aerial Work Trucks Diesel Straight-Armed Type Curved-Armed Type Working Height 18 Meters to 59.9 Meters

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Used Sinoboom GTBZ22J 22m Hydraulic Lift Straight-arm Aerial Work Platform Strong Power
GTBZ22J 22 meter straight-arm aerial work platform
Main Specifications
Overall width: 2.49m
Platform load: 250 kg (unrestricted)
Working height: 24.2m
Product Highlights Strong carrying capacity, large operating range Strong climbing ability Easy to operate, good stability, no impact.
Product performance Maximum platform height22.2 m
Maximum working height24.2 m Maximum horizontal extension16.6 m
Outer turning radius4.97 mInner turning radius1.66 m
Tail sweep1.42 mTurntable rotation360°continuous platform rotation

Product Parameters

Used Sinoboom GTBZ22J 22m Hydraulic Lift Straight-arm Aerial Work Platform Strong Power
Maximum platform height	22.2 m
Maximum working height	24.2 m
Maximum horizontal extension	16.6m
Outside Turning Radius	4.97 m
Inner Turning Radius	1.66 m
Tail sweep	1.42m
Turntable rotation	360° Continuous
Platform rotation	160°
Climbing capacity	30%(2WD)/
	45%(4WD)
Platform loading capacity	250kg(Unrestricted)
Traveling speed (stowed condition)	0~6.3 km/h
Traveling speed (working condition)	0~1.1 km/h
Maximum Allowable Wind Speed	12.5m/s
Maximum Allowable Tilt Angle	5°
Maximum noise during normal operation	82dB(A)
Maximum allowable lateral force	400N
Product Dimensions
Overall length (stowed)	11.2m
Vehicle width (stowed)	2.49m
Height (stowed)	2.84m
Ground clearance	0.45m
Wheelbase	2.49m
Platform size (L×W×H)	2.44m×0.91m×1.1m
Weight	12165kg (2WD)
	12235kg (4WD)
Tire specification / type	36×14-20/ Solid
Hydraulic oil tank volume	170L
Fuel tank volume	160L
Control Voltage	12VDC
Engine	Cum mins / Deutz
Drive Mode	2WD×2WS/4WD×2WS

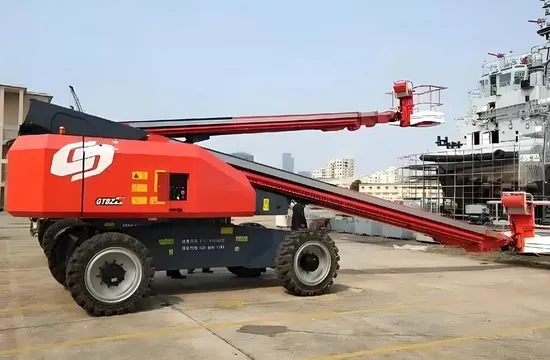

Detailed Photos

Used Sinoboom GTBZ22J 22m Mobile Scissor Lift Straight-arm Aerial Work Platform
GTBZ22J 22m Straight Boom Aerial Work Platform Suitable for shipbuilding, large-scale steel structure construction, construction, municipal, advertising and other industries, providing users with safe and reliable aerial work platforms, adopting the design concept of ruggedness, excellent performance and reliability to meet the needs of the challenging working conditions environment.45% of the maximum climbing capacity so that the product can be parked on this slope without slipping and can be started up again on the slope. The original US imported engine provides strong power for the product; durable solid tires are used. The use of PLC at the level of engineering machinery allows program setting and development to meet individual needs according to customer requirements.
GTBZ22J 22m straight-arm aerial work platform has the advantages of wide operating range, large load capacity and strong power, and adopts advanced technology design to make the product achieve high reliability, safety and comfort.
1,Wide working range: it can be convenient for you to work from 0~24.2m height and 360°all-round operation, and the horizontal extension is up to 18.8m.
2,Large load capacity: it can work in full range within 250kg load capacity, and can accommodate 2 operators at the same time.
Strong power: adopts imported engine of international brand, with high power and strong climbing ability.
3, advanced technology: adaptive floating device, fault self-diagnosis technology, self-leveling system, optional anti-collision induction device
4, high reliability: the engine, key hydraulic components, electrical components are international brands, the design is in line with EN280, AS1418.10, GB25849 standards.
5,Good safety: overload limitation and anti-tipping protection system.
6,Convenient maintenance: rotary engine, easy to maintain.
FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.
