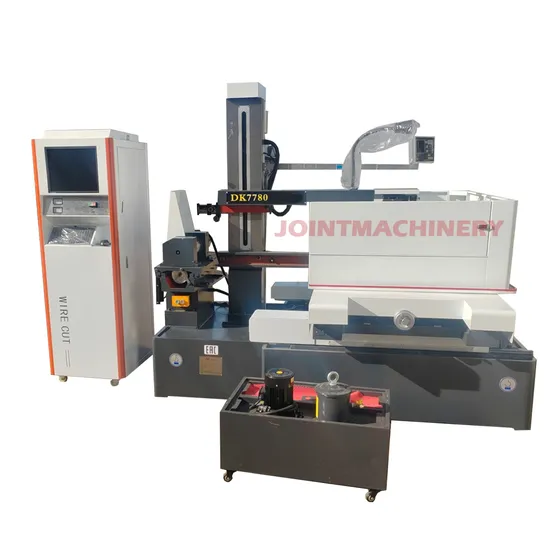

Medium Speed Wire Cut EDM Machine Dk7780 CNC EDM Erosion Machine

Product Description

√ Experience unmatched efficiency with cutting speeds reaching an impressive 90mm. This heralds a new era of productivity in metal fabrication.2/min - that's a staggering 2-3 times faster than conventional medium wire machines, setting a new benchmark in the industry.
√ Delivering exceptional surface smoothness with Ra≤2.5μm, our machine achieves the wire-effect akin to the standard C type, promising quality that stands out.
√ Equipped with state-of-the-art intelligent control cabinets and a comprehensive processing library, mastering the basics of operation is effortlessly simple and intuitive.
√ Offering a perfect blend of superior quality and competitive pricing, it replicates the ordinary C type wire effect, ensuring maximum value for your investment.
Precision CNC Wire Cutting Machine DK7780

Model	Unit	DK7780
Table size	mm	1350*985
Table travel	mm	800*1000
Wire frame span	mm	600
Processing taper	°/mm	6°,15°,30°/80
Max cutting speed	mm2/min	≥90
Optimum processing surface roughness	μm	≤Ra2.5
Electrode diameter	mm	0.10-0.20
Speed of the electrode wire	m/s	11.5
Working liquid		DX-1 DX-4
Processing accuracy		According to GB7926-87 standard
Worktable movement pulse amount		0.001
Machine consumpition power	kw	<1
Max workpiece weight	kg	2000
Net weight	kg	4000
Diemnsion	mm	2600*2400*1800

Detailed Photos
